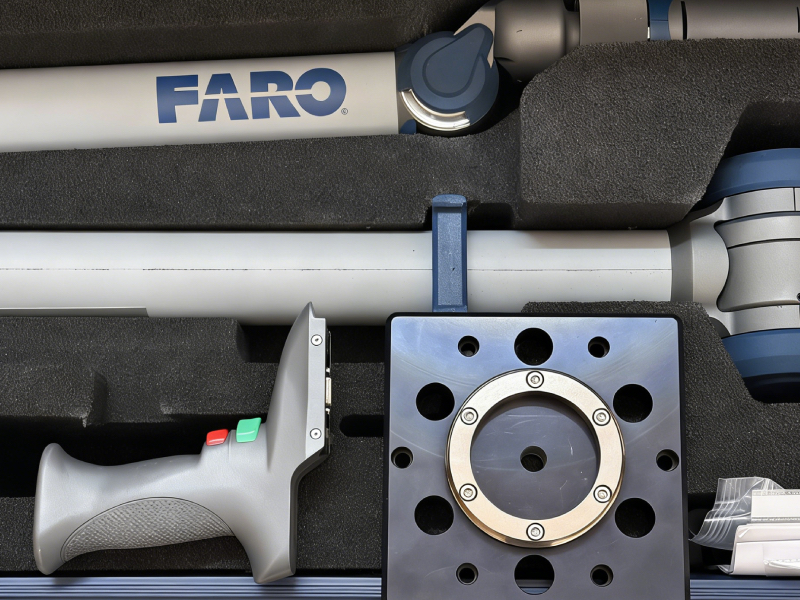

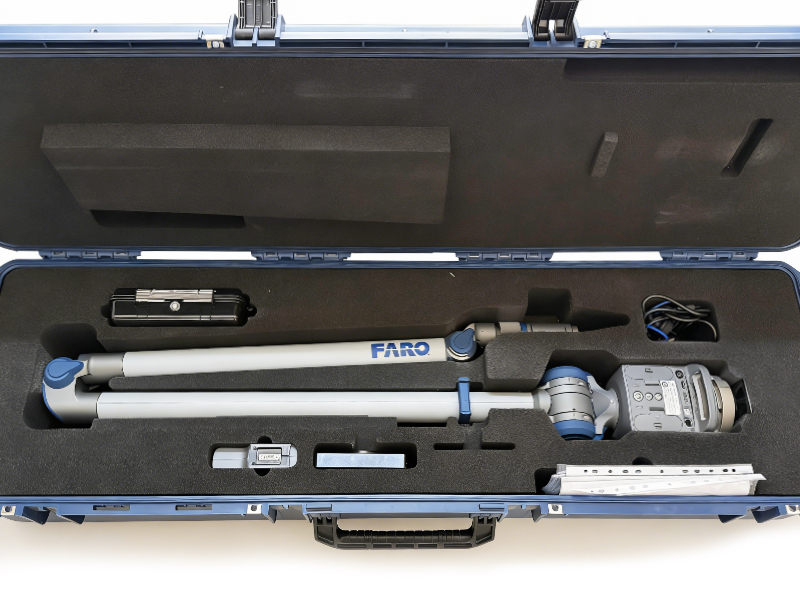

Used FARO Prime Series Portable FaroArm CMM | High-Precision 3D Coordinate Measuring Machine
|
Key Features & Core Advantages
Industry-Leading Measurement Accuracy: The FARO Prime FaroArm delivers a single-point repeatability (SP2) of up to 0.024mm and volumetric length accuracy (MPE) of 0.034mm, meeting the strictest precision requirements for high-end industrial inspection.
Ultra-Portable & Flexible Design: Lightweight, ergonomic articulating arm design with multiple arm length options (1.8m to 3.7m), enabling measurement of parts of all sizes, from small precision components to large-scale assemblies. No fixed installation required, ready for use within minutes on any job site.
Rugged Industrial-Grade Build: IP54 rated dust and water protection, with built-in full-arm temperature compensation sensors, ensuring stable measurement performance in harsh workshop environments, temperature fluctuations, and outdoor job sites.
Wide Software Compatibility: Fully compatible with mainstream metrology software including CAM2 Metrology, PolyWorks, Geomagic Design X, and SolidWorks, seamlessly integrating into your existing engineering and inspection workflow.
Cost-Effective Pre-Owned Solution: Our used FARO Prime units deliver the same factory-level performance as brand-new equipment, at a significantly lower investment cost. Every unit undergoes a strict multi-point inspection and calibration process before sale, ensuring long-term reliable operation.
 |
 |
Detailed Technical Specifications
| Parameter | Specification |  |
|---|---|---|
| Product Series | FARO Prime FaroArm | |
| Standard Configuration | 6-Axis Portable Coordinate Measuring Arm | |
| Optional Configuration | 7-Axis (for integrated laser scanning) | |
| Single-Point Repeatability (SP2) | 0.024mm | |
| Volumetric Length Accuracy (MPE) | 0.034mm | |
| Available Measuring Arm Length | 1.8m / 2.5m / 3.0m / 3.7m | |
| Protection Rating | IP54 (Dust & Water Resistant) | |
| Operating Temperature Range | 0°C to 40°C | |
| Temperature Compensation | Built-in full-arm thermal sensors, real-time compensation | |
| Data Interface | USB 2.0 / Ethernet | |
| Power Supply | 12V DC | |
| Compliance & Certification | CE certified, ISO 10360-2 compliant | |
| Compatible Software | CAM2 Metrology, PolyWorks, Geomagic, SolidWorks, etc. |
Typical Industrial Applications
Automotive Manufacturing: Sheet metal inspection, fixture and tooling calibration, assembly dimensional verification, reverse engineering of automotive parts.
Aerospace & Defense: Precision component inspection, aircraft assembly alignment, maintenance and repair measurement, compliance with aerospace industry standards.
Mold & Die Manufacturing: Mold cavity inspection, wear detection, reverse engineering of mold parts, dimensional verification of injection molds and stamping dies.
Mechanical Engineering & Machining: CNC machined part inspection, geometric dimensioning and tolerancing (GD&T) verification, first article inspection (FAI).
Reverse Engineering & Product Development: 3D data capture of physical parts for CAD model creation, product redesign, and prototype verification.
Heavy Industry & Energy: Large-scale equipment assembly alignment, turbine and generator inspection, pipeline and structural measurement.
