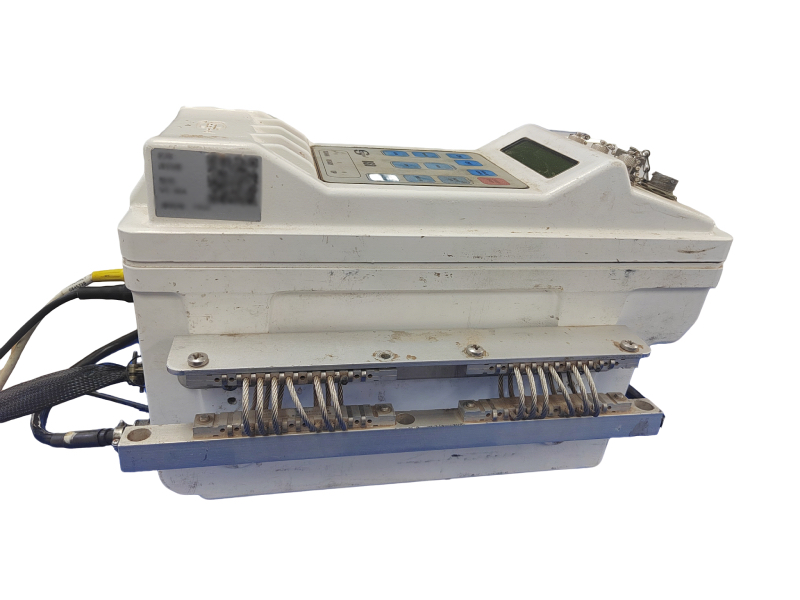

Sercel VE-464 DSD Seismic Vibrator Decoder – Professional Vibroseis Control Unit
Product Overview
The Sercel VE-464 DSD is a high-performance digital control system designed for seismic vibrators, delivering precise real-time monitoring and control of ground force, sweep signals, and vibrator performance. Widely used in geophysical exploration projects, this decoder ensures reliable data acquisition and quality control for vibroseis operations.
|
 |
Key Specifications
| Parameter | Details |
|---|---|
| Brand | Sercel |
| Model | VE-464 DSD |
| Type | Seismic Vibrator Decoder/Control Unit |
| Frequency Range | 1–300 Hz (1-Hz adjustable steps) |
| Signal Length | Up to 64 seconds (1-second increments) |
| Timing Accuracy | ±T0 precision |
| Supported Sweep Types | Linear, logarithmic, pseudo-random, custom-defined |
| Max. Vibrator Support | Up to 100 vibrators |
| Dimensions (W×D×H) | 168 × 427 × 283 mm |
| Weight | 11 kg |
| Condition | Used, fully tested and functional |
|
Core Features
- Real-Time Vibrator Control: Monitors ground force, phase, and amplitude to ensure stable sweep performance.
- Multi-Mode Sweep Support: Compatible with advanced vibroseis techniques like flip-flop, slip-mode, and coded sweeps.
- Data Logging & QC: Transmits complete vibrator attribute sets to the QC database for post-survey analysis.
- Rugged Industrial Design: Built for harsh field environments, with vibration-dampening mounting for reliable operation.
