Creaform EXAscan 50 3D Laser Scanner – High-Precision Handheld Metrology Scanner
The Creaform EXAscan 50 is a flagship handheld 3D laser scanner from Creaform’s HandySCAN series, designed for ultra-high precision 3D measurement and digitization. With industry-leading 50μm accuracy and advanced self-positioning technology, it sets the standard for industrial 3D scanning workflows.
 |
|
Key Technical Specifications
- Brand/Model: Creaform EXAscan 50 (EXAscan50)
- Scanning Technology: Triple HD cameras + laser projection (3rd camera for enhanced resolution)
- Accuracy: 50 μm (0.05 mm)
- Volumetric Precision: ISO 20 μm + 0.2L/1000
- Measurement Rate: 25,000 measurements per second
- Laser Class: Class II (eye-safe)
- Laser Wavelength: 600 nm
- Depth of Field: 300 mm
- Weight: 1.25 kg (2.75 lbs)
- Dimensions: 172 × 260 × 216 mm (6.75 × 10.2 × 8.5 in)
- Software: VXelements (scan data processing & analysis)
- Connectivity: FireWire 2.75 m cable

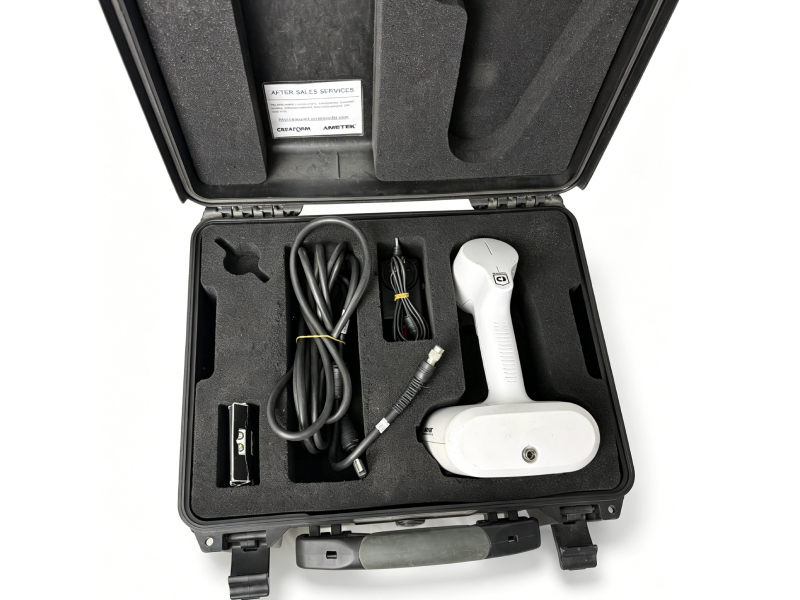

- Included Accessories: Calibration plate, 2,500 reflective targets, ergonomic support, hard carrying case
- Warranty: 1 year
- Condition: Original / Brand New / Certified Refurbished
Core Advantages
- Ultra-High Precision: 50μm accuracy and triple-camera design deliver industry-leading resolution for intricate details and complex surfaces.
- Self-Positioning & Portable: No external tracking devices required; lightweight (1.25kg) and compact for on-site scanning in any environment.
- Fast & Efficient: 25,000 measurements/sec reduces project time, ideal for high-volume industrial applications.
- Versatile Applications: Perfect for reverse engineering, quality control, aerospace, automotive, heritage preservation, and medical device manufacturing.
- User-Friendly Workflow: VXelements software enables seamless data capture, processing, and export to all major CAD formats (STL, OBJ, PLY, etc.)
