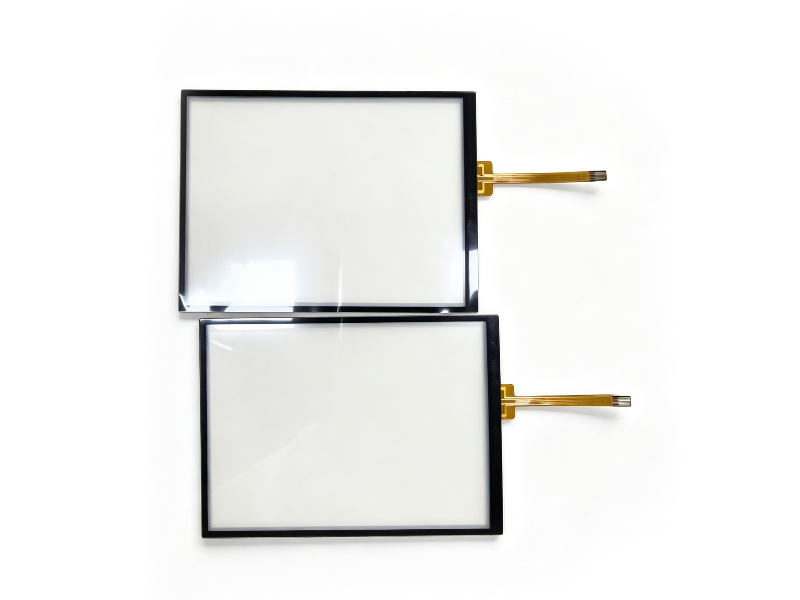

Product Title: Trimble TSC3 Controller Touch Screen Replacement Part
Product Introduction
This replacement touch screen is designed specifically for the Trimble TSC3 field controller, a critical component for surveying, mapping, and geophysical field work. As a professional supplier of used and refurbished geophysical equipment, we provide high-quality replacement parts to restore your Trimble TSC3 controller to full functionality, ensuring reliable operation in outdoor survey environments.
 |
|
Product Specifications
| Parameter | Details |
|---|---|
| Compatible Device | Trimble TSC3 Field Controller |
| Screen Type | Resistive Touch Screen |
| Size | 4.2-inch (10.7 cm) |
| Resolution | 640 x 480 (VGA) |
| Backlight | LED backlight (sunlight-readable) |
| Interface | FPC flex cable (compatible with original connector) |
| Application | Trimble Access survey software, field data collection |
Installation Instructions
- Preparation: Power off your Trimble TSC3 controller completely, remove the battery, and discharge static electricity to avoid component damage.
- Disassembly: Open the controller casing carefully, disconnect the old touch screen’s flex cable from the mainboard, and remove the damaged screen.
- Alignment: Place the new touch screen in the housing, aligning it with the original mounting position to ensure proper fit.
- Connection: Connect the new touch screen’s flex cable securely to the mainboard connector, ensuring the pins are fully seated.
- Reassembly: Reinstall the controller casing, reinsert the battery, and power on the device.
- Calibration: Navigate to the controller’s touch screen calibration settings and follow the on-screen prompts to calibrate the touch response for optimal accuracy.
Key Features
- Direct Compatibility: 100% fit for Trimble TSC3 controllers, no modifications required for installation.
- Durable Performance: Resistive touch design, suitable for outdoor use, supporting sunlight-readable operation.
- Precise Response: Restores full touch functionality for Trimble Access software, ensuring accurate survey data input and control.
- Reliable Quality: Tested for durability and touch accuracy, providing long-term performance for field work.
