Introduction
Upgrade your land surveying, construction layout, or GIS mapping projects with this fully functional used Trimble R8 GNSS RTK receiver paired with a Trimble TSC3 data collector. This kit combines industry-leading Trimble precision with a cost-effective solution, ideal for surveyors, civil engineers, and geospatial professionals seeking reliable, calibrated equipment at a fraction of the new price.
|
Key Specifications & Performance
The Trimble R8 GNSS receiver is built for accuracy and versatility, featuring:
Positioning Accuracy:
RTK Horizontal: 5 mm + 0.5 ppm RMS
RTK Vertical: 10 mm + 1 ppm RMS
Initialization time: Typically <8 seconds, with >99.9% reliability
GNSS Tracking: Supports GPS, GLONASS, Galileo, and BeiDou constellations with 440 channels (Trimble Maxwell 6 chipset)
Communication: Internal UHF radio (410–470 MHz) for RTK corrections, plus Bluetooth/USB connectivity
Environmental Rating: IP67 water/dust resistance, operating temperature range: -40°C to +65°C
Trimble TSC3 Controller:
QWERTY keyboard + color touchscreen display
Runs Trimble Access/Trimble Survey Controller software
Rugged, IP67-rated design for field use
 |
 |

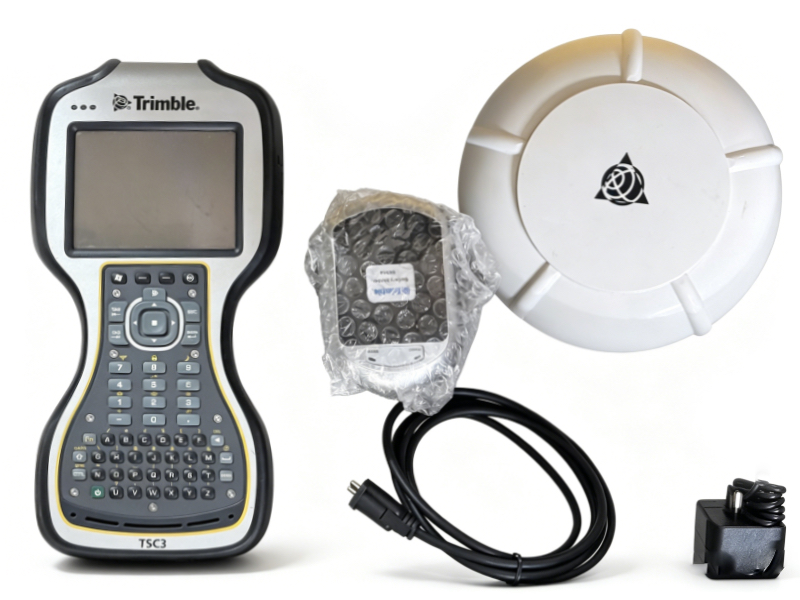

- 1x Trimble R8 GNSS RTK receiver
- 1x Trimble TSC3 handheld controller (preloaded with survey software)

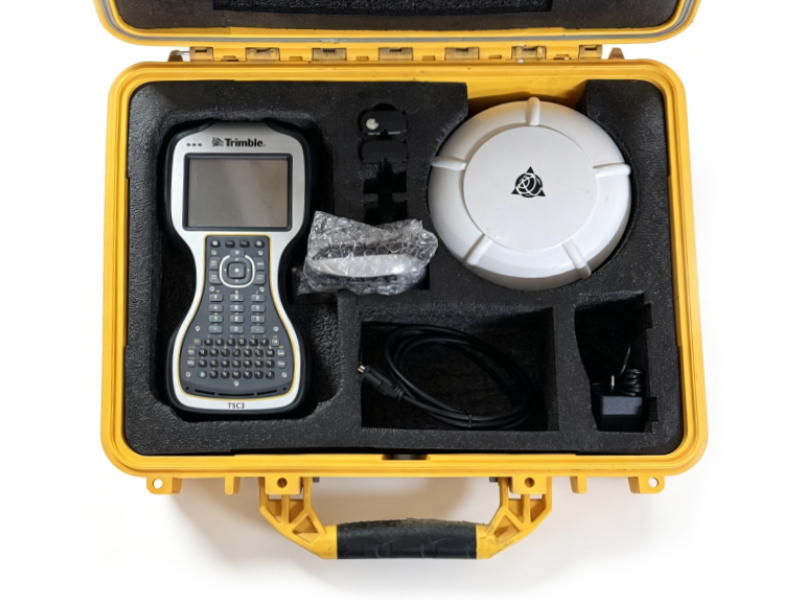

- 1x Protective hard carrying case
- All required cables, chargers, and mounting accessories (as shown in photos)
- Set Up the Base Station: Place the Trimble R8 receiver on a known survey point, power it on, and configure it as a base station via the TSC3 controller using Trimble Access software.
- Configure the Rover: Mount the second R8 receiver (if included) or use the same unit as a rover on a range pole, pairing it with the TSC3 via Bluetooth.
- Start RTK Corrections: Connect the base and rover via UHF radio, then begin collecting real-time kinematic data for topographic surveys, stakeouts, or construction layout.
- Data Management: Store field data on the TSC3 controller, then transfer files to your office computer via USB for post-processing or reporting.
