Trimble R10 & TSC3 Bluetooth Chip | High Precision Geophysical Equipment Parts
Product Overview

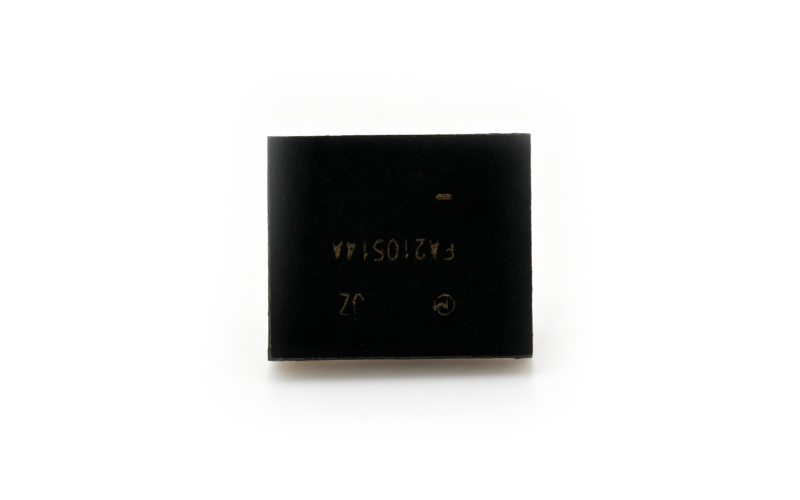

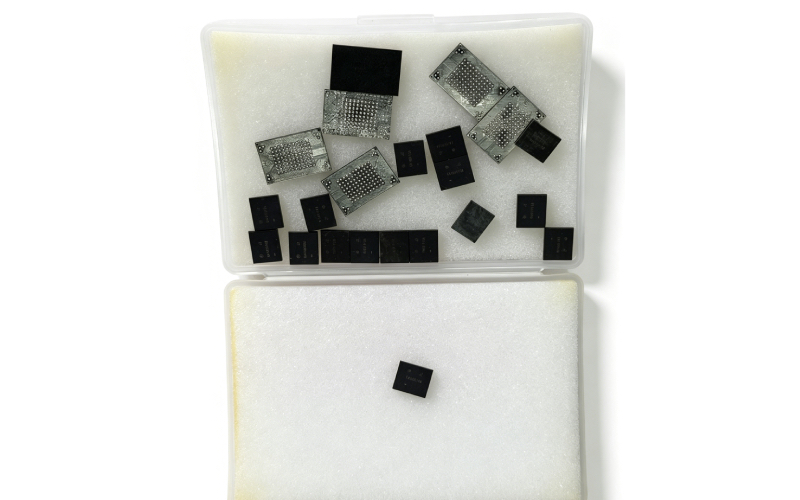

We are a professional supplier of second-hand geophysical and surveying equipment, providing high-quality replacement accessories for mainstream Trimble survey instruments. This Trimble R10 TSC3 Bluetooth Chip is a core communication component, specially used to repair and replace faulty Bluetooth modules of R10 GNSS receiver and TSC3 data collector, ensuring stable wireless data transmission for high-precision surveying and geophysical exploration work.
|
Product Key Parameters
- Compatible Model：Trimble R10 GNSS Receiver、Trimble TSC3 Field Controller
- Bluetooth Version：Bluetooth 2.0+EDR
- Working Frequency：2.4GHz Industrial ISM Band
- Application Accuracy：Supports centimeter-level high-precision GNSS data interaction
- Working Temperature：-20℃ ~ +60℃，adapt to outdoor field operation
- Feature：Industrial anti-interference design, low power consumption, plug-and-play
 |
 |
Brief Instruction Manual
- Before installation, power off the Trimble R10 receiver and TSC3 controller to avoid circuit damage.
- Disassemble the equipment shell according to the official maintenance disassembly process, locate the original Bluetooth chip position.
- Remove the faulty module, install our new Bluetooth chip correctly, and fix the interface.
- After assembly, power on the device, turn on the Bluetooth function, and complete wireless pairing test.
- Applicable scenarios：geophysical exploration, land survey, engineering mapping, RTK base and rover connection.
