Omnislam R6 Mobile SLAM 3D Laser Scanner – Used Geophysical Survey Equipment
Overview

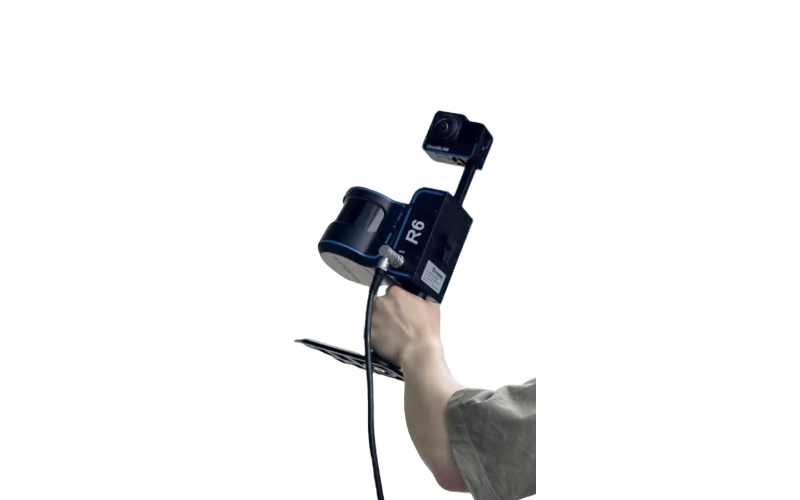

The Omnislam R6 is a cm‑grade mobile SLAM 3D laser scanner designed for high‑precision geophysical & topographic data collection. Integrating RTK‑SLAM® & LIO‑PANO® technologies, it supports handheld, backpack & vehicle‑mounted operation, enabling indoor/outdoor 3D mapping with true‑color point clouds. As a trusted supplier of used geophysical equipment, we offer certified pre‑owned R6 scanners with full technical support.
 |
 |
Key Specifications
| Parameter | Value |
|---|---|
| Brand/Model | Omnislam R6 |
| Technology | RTK‑SLAM®, LIO‑PANO® |
| Relative Accuracy | 1 cm |
| Absolute Accuracy | 3 cm |
| Point Cloud Density | 10,000 points/m² |
| Point Thickness | 1 cm |
| Field of View | 360° × 360° |
| Color | Full‑space true‑color |

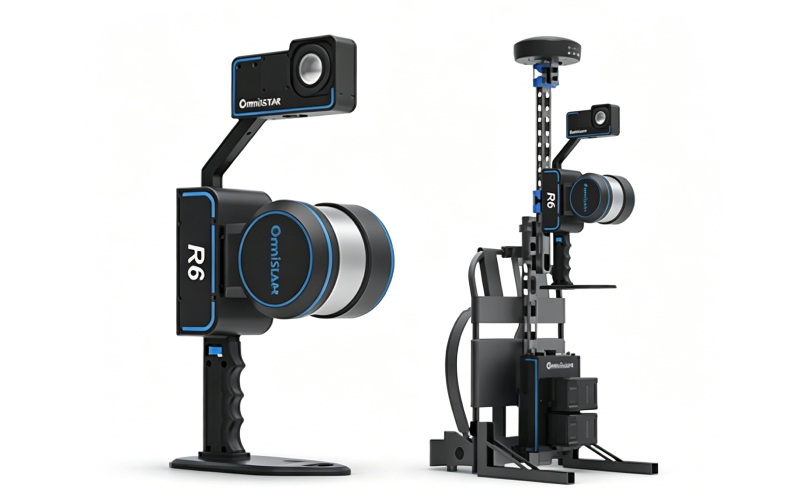

| Operation Modes | Handheld, backpack, mobile platform |
| Max Area per Scan | 1 km² |
| Battery Life | 3 hours (hot‑swappable) |
| Operating Temp | -25℃ to 65℃ |
| Applications | Topography, mining, water survey, underground mapping |
|
Quick User Manual
- Unpack & Inspect – Check scanner, batteries, charger, cables & case for damage.
- Battery Installation – Insert 2 hot‑swappable batteries; power on via side button.
- Operation Mode – Select handheld (flexible) or backpack (long‑distance) mode.
- Scan Calibration – Perform 1‑minute ambient calibration outdoors for optimal accuracy.
- Data Acquisition – Walk at normal speed; R6 auto‑captures 360° data with real‑time point cloud display.
- Data Export – Transfer true‑color point clouds to PC via USB; compatible with mainstream survey software.
- Maintenance – Keep lens clean; store in dry environment; update firmware quarterly.
Why Buy Used Omnislam R6 from Us
- ✅ Certified Pre‑Owned – Fully tested, calibrated & serviced by geophysical experts.
- ✅ Cost‑Effective – Save 40–60% vs. new units with reliable performance.
- ✅ Warranty & Support – 6‑month warranty + global technical assistance.
- ✅ Fast Shipping – Worldwide delivery with secure packaging.
