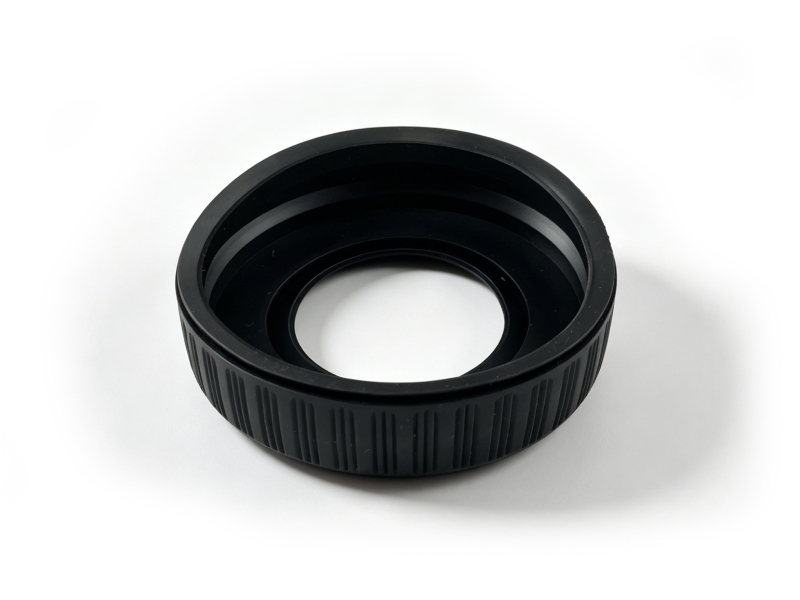

Leica Total Station Rubber Focus Ring – Non-slip Replacement for Geophysical Survey
Product Overview
The Leica Total Station Rubber Focus Ring is a professional original replacement part designed for Leica total station series, including TS02, TC402, TPS1200, TCR402 and S910 models widely used in geophysical exploration, engineering measurement and topographic mapping. Made of high-quality rubber material, it features non-slip and wear-resistant performance, ensuring smooth and precise focusing operation, which is crucial for maintaining the measurement accuracy of the total station in harsh outdoor field conditions.
 |
Product Specifications
- Brand: Leica
- Compatible Models: Leica TS02, TC402, TPS1200, TCR402, S910 series total stations
- Material: High-quality durable rubber (non-slip, wear-resistant, aging-resistant, oil-proof)
- Function: Ensures smooth focusing, non-slip grip, protects internal focusing components
- Color: Black (matches original Leica total station design, consistent with Leica rubber accessories style)
- Inner Diameter: 28mm (approximate), Outer Diameter: 35mm (approximate), Thickness: 5mm (approximate)
- Features: Original fit, easy installation, non-slip surface, wear-resistant, flexible, dust-proof, compatible with Leica total station focusing mechanism
- Condition: Used (original Leica part, fully functional, minor cosmetic wear, no impact on focusing performance)
- Application: Geophysical survey, engineering measurement, topographic mapping, mining survey, construction surveying, underground facility detection
|
Brief Installation Instructions
- Preparation: Turn off the Leica total station and place it on a stable, clean surface. Ensure the device is powered off to avoid accidental operation during installation.
- Remove Old Focus Ring: Locate the rubber focus ring on the total station’s telescope. Gently peel off the old ring from the focusing knob, starting from one end (do not use sharp tools to avoid damaging the knob).
- Clean Knob Surface: Use a dry, soft cloth to wipe the focusing knob surface, removing dust, dirt, or residual adhesive to ensure a tight fit for the new rubber ring.
- Install New Focus Ring: Align the new Leica Rubber Focus Ring with the focusing knob, stretch it slightly (avoid over-stretching) and wrap it around the knob, ensuring it fits tightly without looseness. Press gently to secure it in place.
- Verification: Turn on the total station, rotate the focusing knob to test, ensuring smooth operation, non-slip grip, and no interference with the total station’s measurement accuracy.
