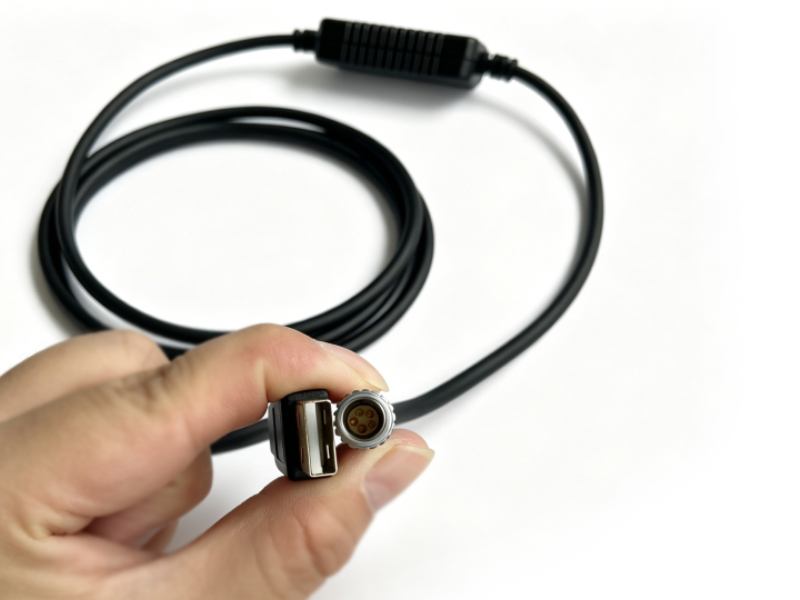

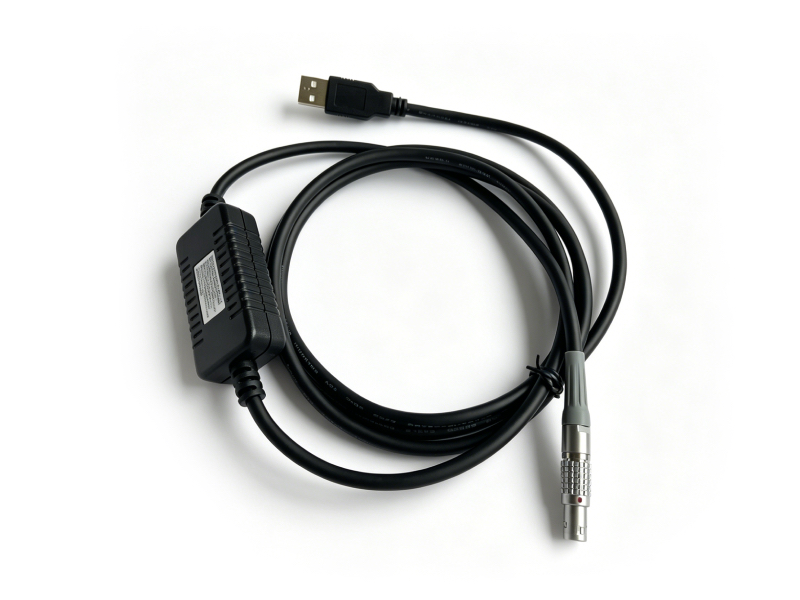

Leica Total Station USB Data Cable – High-Speed Replacement for Geophysical Survey
Product Overview
The Leica Total Station USB Data Cable is a professional original replacement part designed for Leica total station series, including TS02, TC402, TPS1200, TCR402 and S910 models widely used in geophysical exploration, engineering measurement and topographic mapping. It supports high-speed data transmission, enabling fast and accurate sync of survey data between the total station and computers, which is crucial for improving work efficiency in field operations.
 |
 |
|
Product Specifications
- Brand: Leica
- Compatible Models: Leica TS02, TC402, TPS1200, TCR402, S910 series total stations
- Cable Type: USB 2.0 (backward compatible with USB 1.1), male to male (or male to mini USB, matching Leica original interface)
- Transmission Speed: Up to 480Mbps, high-speed data sync without lag
- Cable Length: 1.5m (approximate), flexible and durable for field use
- Material: Tinned copper core + PVC sheath (anti-interference, wear-resistant, waterproof)
- Features: Original fit, plug-and-play, anti-interference, high-speed transmission, durable, compatible with Leica data management software
- Condition: Used (original Leica part, fully functional, minor cosmetic wear on sheath, no impact on transmission performance)
- Application: Geophysical survey data sync, engineering measurement data transfer, total station parameter configuration, data backup and export
Brief Installation Instructions
- Preparation: Turn off the Leica total station and the connected computer to avoid data loss or equipment damage during connection.
- Connect the Cable: Insert one end of the USB cable into the USB interface of the Leica total station (located on the side or bottom of the device), and insert the other end into the USB interface of the computer.
- Power On Devices: Turn on the total station first, then turn on the computer. The computer will automatically recognize the total station device (no additional drivers needed for most systems).
- Data Sync Operation: Open Leica data management software (e.g., Leica Geo Office) on the computer, select the connected total station, and start data transfer, export or backup as needed.
- Disconnection: After data operation is completed, safely eject the total station device from the computer first, then unplug the USB cable from both the total station and the computer to avoid data corruption.
