Leica GMP101 Mini Prism with 4 Poles – High Precision Surveying Kit
Introduction

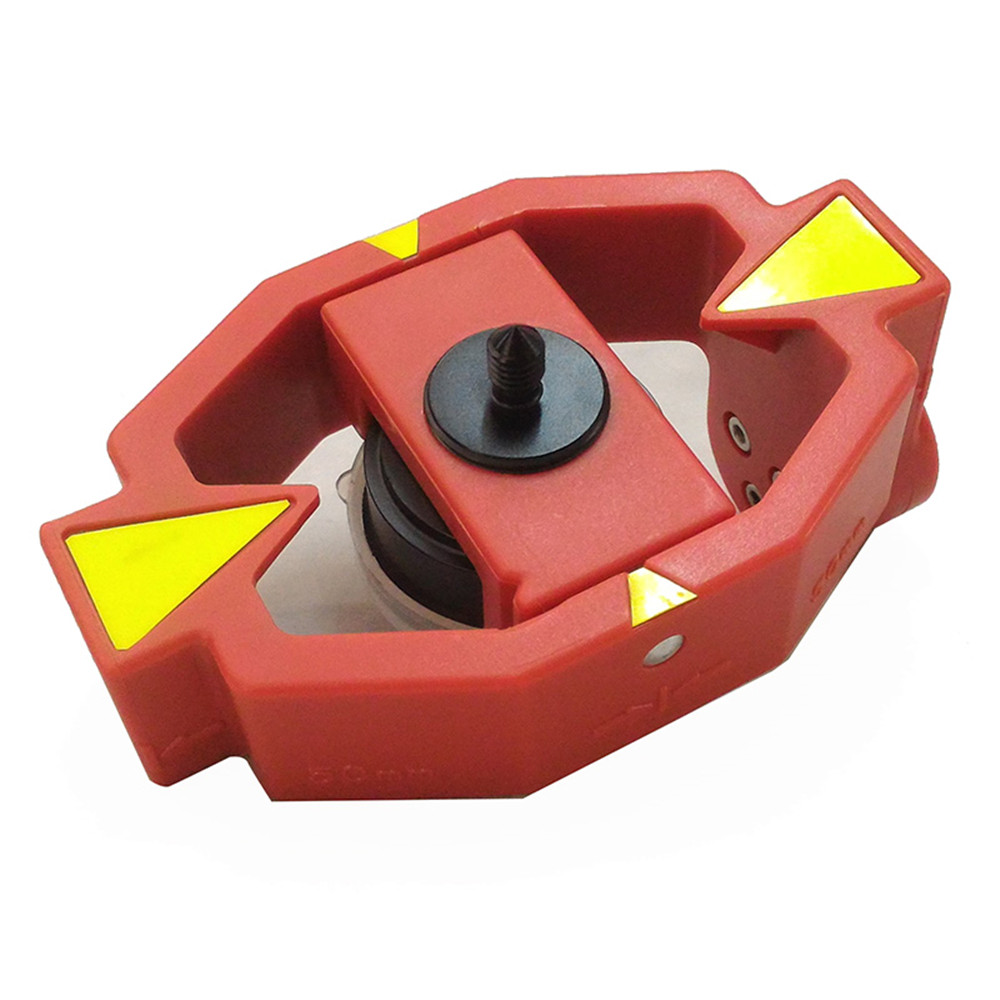

The Leica GMP101 (also known as the 101 Mini Prism) is the trusted compact reflector for professional surveyors, engineers, and construction teams. This complete kit includes the original Leica mini prism, a sturdy metal holder, a circular bubble, a target plate, a spike, and four aluminium poles for flexible height setup. With industry-leading accuracy and robust build quality, it fits perfectly for short-range, tight-access, and monitoring projects.
|
 |
 |
Key Features
- Brand & Model: Leica GMP101 Mini Prism
- Centering Accuracy: 1.0 mm
- Working Range: 2,000 m (6,600 ft)
- Prism Constant: +17.5 mm
- Beam Deviation: 3 arcseconds
- Poles: 4-section aluminium poles (adjustable height)
- Mount: Metal holder with circular bubble & removable target plate
- Compatibility: Leica total stations (GLS11, GRT44, etc.)
- Housing: Durable metal, field-proven construction
- Accessories: Spike, padded carrying bag
Technical Specifications（Full）
- Prism Type: Corner-cube retroreflector
- Effective Diameter: 25.4 mm
- Centering Accuracy: 1.0 mm
- Working Range: 2000 m
- Prism Constant: +17.5 mm
- Beam Deviation: 3 arcseconds

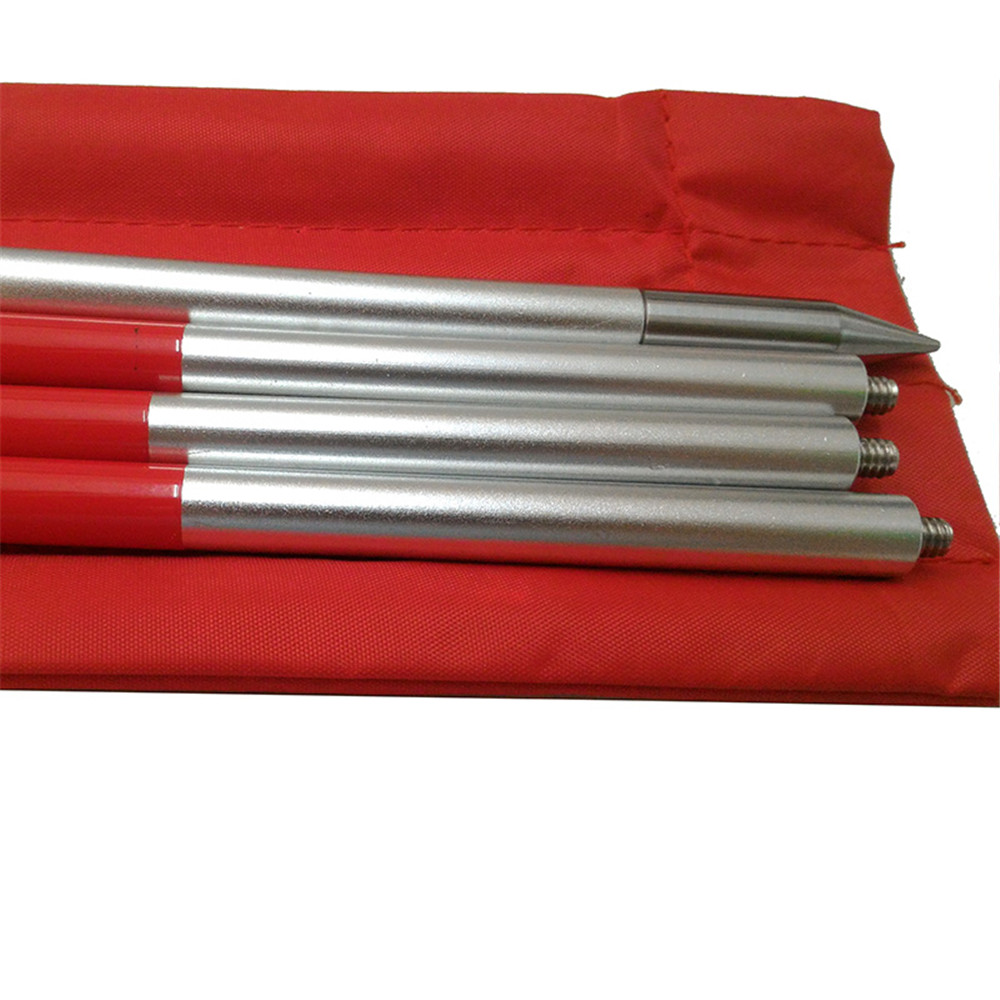

- Poles: 4 × aluminium poles, 30 cm each
- Adjustable Heights: 10 cm to 130 cm
- Material: Aluminium alloy + optical glass
- Operating Temperature: -20 °C to +60 °C
- Protection Class: IP54
- Weight: Approx. 210 g (prism only)
- Package Includes: Prism, metal holder, bubble, target plate, spike, 4 poles, padded bag
