Price: $65.99 | Compatible Model: Leica RX1250 Wireless Field Controller, GFU Radio Housing, System 500 & System 1200 GNSS GPS Receivers
This OEM short GEV167 interconnection cable fixes typical compact RTK kit connection issues: loose short-range handset radio link, intermittent real-time differential data transmission, damaged original factory short jumper wire, unstable RX1250 controller communication with GFU radio module, signal dropouts during rover walking vibration, and broken thin original cable internal conductors. Fully replicates factory pin definition to maintain consistent bidirectional RTK data and radio power transfer within Leica GNSS rover GFU housing assembly.
|
 |
Product Overview

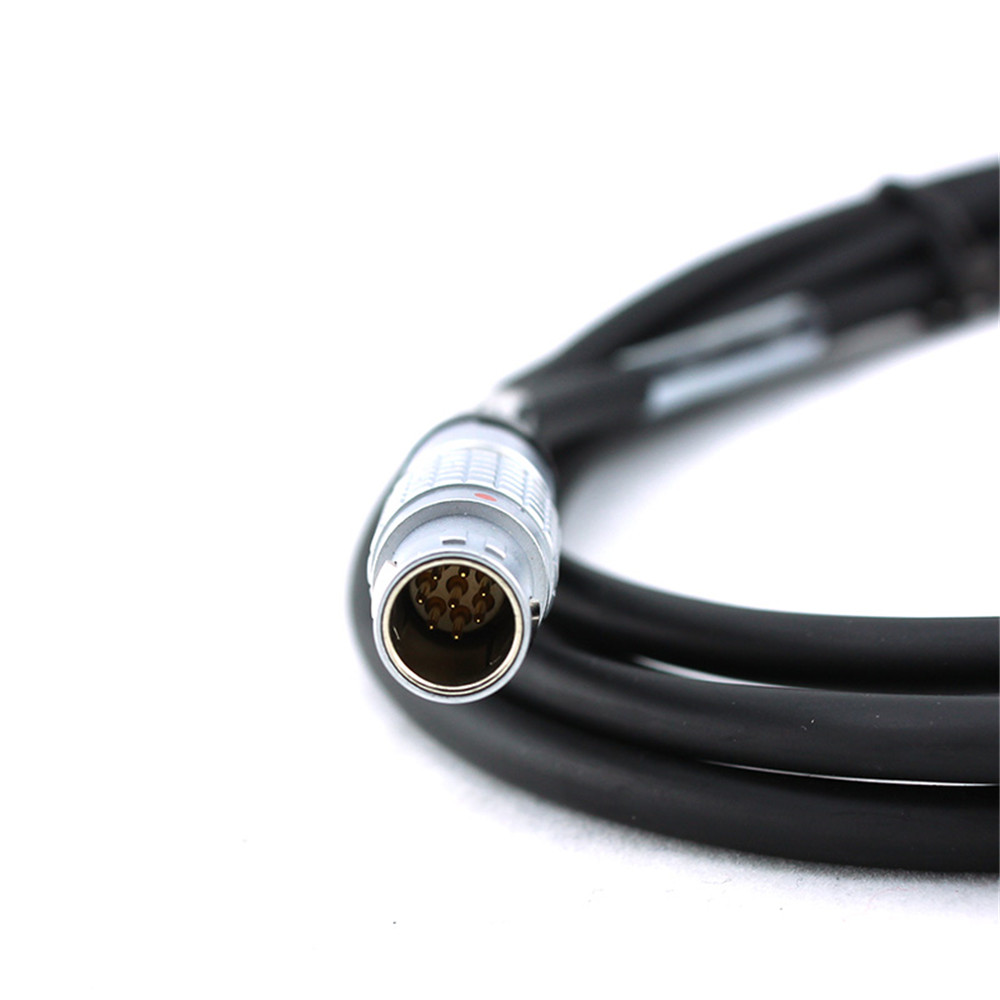

The Leica GEV167 short jumper cable with official OEM article number 733288 is a dedicated 0.5-meter mini interconnection lead designed exclusively for Leica GFU radio housing and RX1250 wireless controller matching System 500 / System 1200 GNSS RTK rover kits. One end adopts Lemo 1B bayonet-locked 8Pin male plug, the other end is matching Lemo 1B 8Pin female socket for quick plug-in inside the compact rover radio housing. Built with double-layer fully shielded fine pure copper wire core and flexible wear-resistant TPE/PUR outer sheath, this short cable blocks electromagnetic interference from UHF radio modules and GNSS receiver mainboards inside the confined GFU housing. Molded reinforced strain relief at both connector roots prevents wire fracture from repeated assembly/disassembly and field vibration impact during all-day topographic and construction survey work.
Core Advantages & Practical Structural Design
- Lemo 1B 8Pin Male to Female bayonet lock connector configuration, direct plug-and-play replacement for original factory GEV167 short cable
- Standard 0.5m compact short length, perfectly fits confined internal layout inside GFU radio housing without excess tangled wiring
- 100% original factory pinout replication, simultaneously transmits RTK differential data, stakeout coordinates and auxiliary radio power supply
- Double full shielding internal wiring, minimizes RF signal crosstalk inside narrow GFU housing and eliminates real-time fixed solution loss
- Soft anti-aging flexible TPE cable jacket, resists temperature changes and abrasion inside sealed radio housing long-term
- Twist bayonet locking Lemo connectors, avoids accidental loose disconnection under rover movement and bumping
- Full compatibility with RX1250 wireless hand controller, GFU radio housing, System 500 & System 1200 GNSS receiver series
- Compatible matching accessory: Trimble TSC3 / TSC2 Yellow Nylon Carrying Case ($25, 0.2kg, 18 × 12 × 10 cm)
- Ultra-small foldable mini size, easy storage in front accessory pouch alongside other serial jumper wires, antenna brackets and spare batteries
Compact GFU RTK Internal Connection & Application Scenarios
Mandatory short jumper accessory for portable lightweight RTK rover survey, land boundary mapping, pipeline layout, construction stakeout and small-area engineering deformation monitoring projects. Survey technicians install GEV167 cable inside GFU radio housing to create stable wired communication link between RX1250 wireless controller and System 1200/500 GNSS receiver, ensuring continuous real-time differential data flow and reliable radio transmission without mid-job signal interruption. Store this short GFU jumper cable and other tiny survey peripherals in our high-visibility yellow nylon data collector case; reinforced canvas belt loop supports waist hanging for convenient portable field transport.
Product Specifications
| OEM Article Number | GEV167 / 733288 |
|---|---|
| Connector Layout | Lemo 1B 8Pin Male Bayonet Lock to Lemo 1B 8Pin Female |
| Standard Cable Length | 0.5 Meters |
| Outer Jacket Material | Flexible Wear-Resistant TPE / PUR Insulation |
| Matched Controller | Leica RX1250 Wireless Field Controller |
| Matching Radio Housing | Leica GFU UHF Radio Housing Module |
| Compatible GNSS Receivers | System 500 Series, System 1200 Series GNSS GPS Rover Receivers |
| Core Function | Internal GFU housing bidirectional RTK data & radio power jumper connection |
| Unit Net Weight | 0.06 kg |
| Stock Status | In Stock, Fast 24-Hour Global Dispatch |
| Matching Carry Case Specs | Yellow Wear-Resistant Nylon Case, Price $25, Weight 0.2kg, Dimension 18 × 12 × 10 cm |
Matching Survey Accessory: Trimble TSC3 / TSC2 Carrying Case ($25)
Constructed with thick tear-proof nylon fabric, this bright yellow field protective bag shields Trimble TSC2 & TSC3 handheld data collectors from scratches, dirt and minor impact damage. Equipped with solid canvas belt loop for waist mounting, the independent front storage compartment holds GEV167 GFU jumper cables, other GEV series communication leads, GAD antenna arms and screen protectors. 20 units available in warehouse for immediate worldwide shipping.
