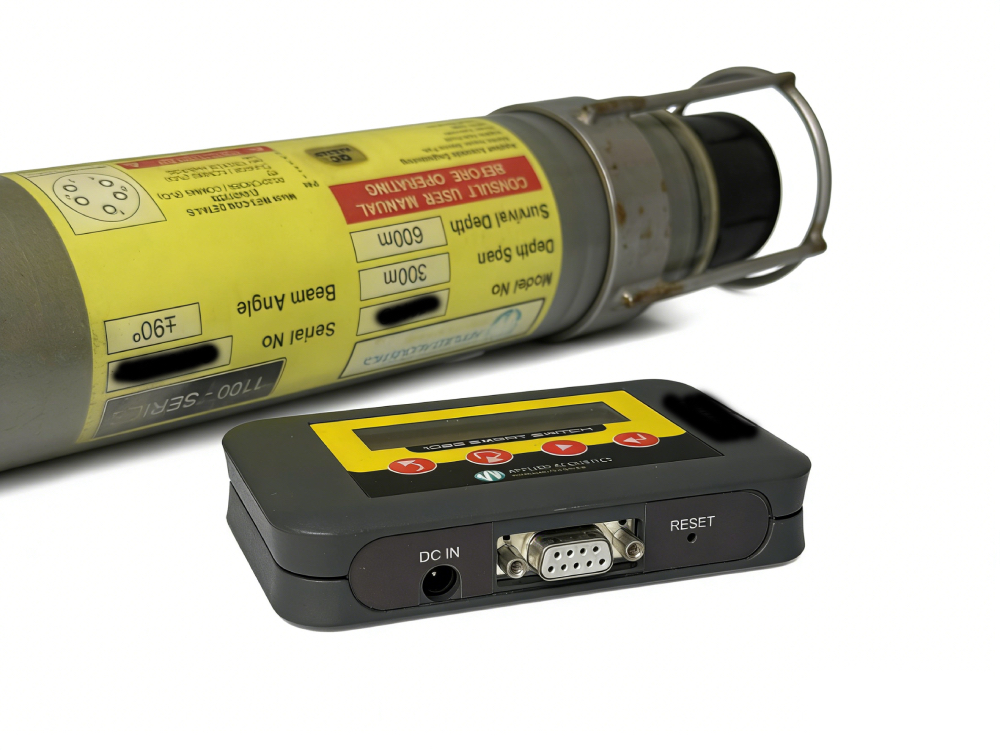

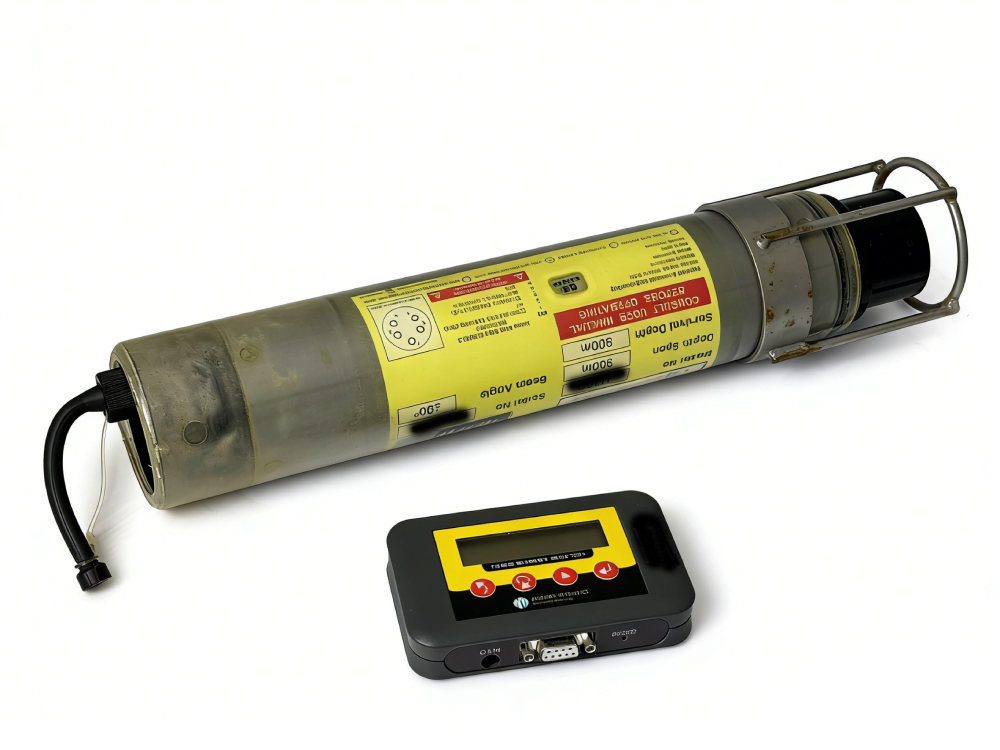

Applied Acoustics Mini 1119D Acoustic Positioning Beacon | Pre-Owned, Fully Calibrated
As a professional supplier of used geophysical and subsea survey equipment, we offer fully tested, factory-calibrated Applied Acoustics Mini 1119D acoustic positioning beacons — the industry-standard workhorse for reliable, high-precision underwater tracking and navigation across European offshore, hydrographic, and marine engineering operations.
The Mini 1119D is part of Applied Acoustics’ industry-leading 1100 Series Mini Beacons, engineered with the proprietary Sigma 2 bi-directional spread spectrum protocol for unmatched range resolution and positional stability in challenging subsea environments. Purpose-built for tracking ROVs, AUVs, towfish, and divers, this beacon delivers consistent performance for hydrographic survey, offshore construction, oceanographic research, and subsea asset monitoring.
![]() |
Core Technical Advantages
Sigma 2 Spread Spectrum Technology: Delivers ultra-precise ranging and stable positioning, fully compatible with Easytrak Pyxis, Nexus 2, and all industry-standard USBL tracking systems
Multi-Fire Common Interrogate: Supports up to 10 simultaneous beacon IDs, enabling multi-target tracking in complex operations
Integrated Depth Telemetry (1119D Exclusive): Factory-fitted internal depth sensor to enhance horizontal positioning accuracy, with configurable depth ranges up to 2000m
MiQ Data Telemetry: Supports 800bps payload for third-party sensor data transmission, expanding operational versatilityApplied Acoustics Limited
Rugged Marine-Grade Construction: Hard-anodized aluminum housing, rated for 1500m survival depth, withstanding harsh offshore conditions
Multi-Mode Operation: Field-configurable as a Transponder (acoustic trigger), Responder (electrical trigger), or Pinger via the standard MCBH5M 5-way connector
Full Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Mini 1119D (1100 Series) |
| Manufacturer | Applied Acoustics (UK) |
| Survival Depth Rating | 1500m |
| Beam Pattern | ±90° hemispherical coverage |
| Source Level (SPL) | 188dB |
| Transmit Frequency Range | 21 – 31 kHz |
| Receive Frequency Range | 17 – 31 kHz |
| Operational Battery Life | 55 hours at 1.0pps (Sigma 2 mode) |
| Listening Standby Life | 60 days |
| Battery Type | Rechargeable NiMH (standard), with on-board 3-hour fast charger |
| Dimensions | 74mm (Outer Diameter) x 395mm (Length) |
| Weight (Air / Water) | 2.90 kg / 1.40 kg |

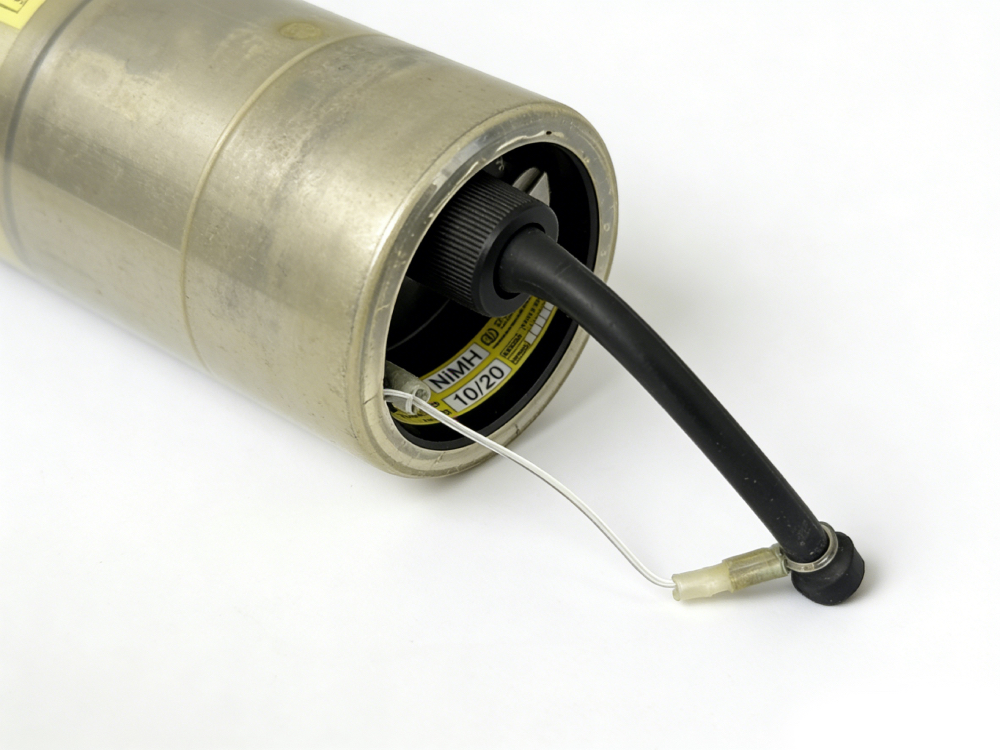

| Connector | MCBH5M 5-way subsea connector |
| Refresh Rate | >1Hz |
| Protocol Compatibility | Tone, Chirp, MFSK, DSSS, FHSS, Sigma 1 & Sigma 2 |
![]() |
![]() |
![]() |
Quick Operation Manual (Short Form)
- Pre-Deployment Configuration
- Connect the beacon to a compatible PC via the MCBH5M interface and RS232 serial adapter (9600 baud rate, 8-N-1)
- Configure operating mode (Transponder/Responder/Pinger), transmit/receive frequencies, pulse rate, and Multi-Fire ID via Applied Acoustics configuration software
- Verify battery charge status; full charge is recommended before deployment (3-hour fast charge for full capacity)
- Deployment
- Secure the beacon to the target asset (ROV/AUV/towfish) using the integrated mounting points, ensuring the transducer has unobstructed line of sight to the surface USBL array
- Power on the beacon; it will enter listening standby mode by default, awaiting acoustic interrogation
- For Responder mode, connect the external trigger input to the asset’s control system (5-25V DC trigger signal)
- In-Operation
- The beacon will automatically respond to valid acoustic interrogation signals from the surface USBL system
- Monitor range and positioning data via your surface navigation software; the integrated depth sensor will transmit real-time depth data for enhanced positioning accuracy
- Adhere to the rated operational battery life to avoid power loss during deployment
- Post-Deployment
- Retrieve the beacon and rinse thoroughly with fresh water to remove saltwater and debris
- Dry the unit completely, especially the connector interface, and apply dielectric grease to the connector pins
- Recharge the battery fully before storage; store in a cool, dry environment away from direct sunlight and corrosive materials
