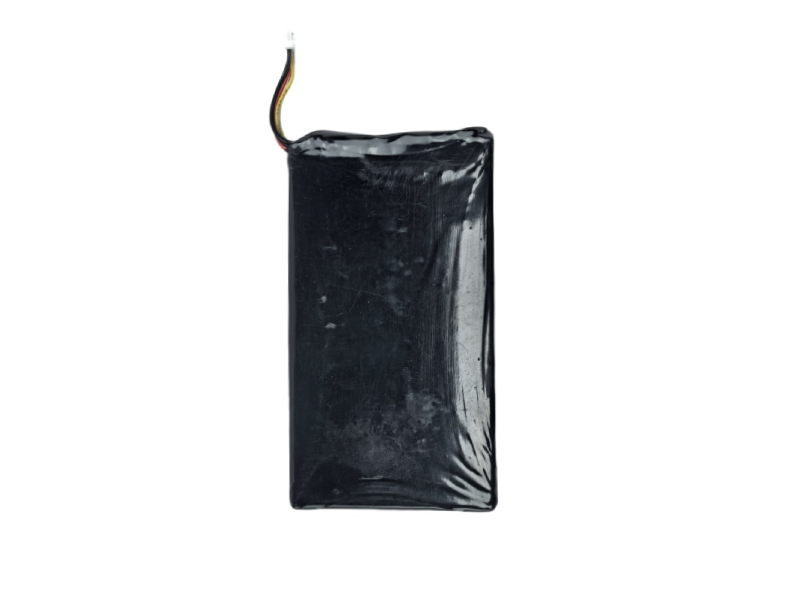

Trimble T41 Battery (3.7V 4000mAh Li‑Po) – S11GD103A for Juno T41/T45 Data Collectors
Power your Trimble Juno T41/T45/5 handheld data collector with this high‑performance Li‑Po battery, engineered for all‑day reliability in GIS mapping, RTK surveying, construction layout and field data collection. Designed as a direct OEM replacement for part number S11GD103A / S11DG103A, it delivers stable power, long runtime and rugged durability for professional fieldwork.
|
 |
Key Benefits
- Full Compatibility: Fits Trimble Juno T41, T45, Juno 5, Slate; Spectra Precision T41; Geospatial T41‑R01‑001
- High Capacity: 3.7V Li‑Polymer, 4000mAh (14.8Wh) / 3300mAh (12.2Wh)
- Long Runtime: 10–12 hours continuous field use (4000mAh)
- Ultra‑Slim & Light: 6.6mm thickness, 109g weight
- Built‑in Safety: Overcharge, over‑discharge, short‑circuit, thermal protection
- Rugged Field Design: IP54 dust & splash resistant
- Wide Temperature: -20°C to +55°C
- Plug‑and‑Play: Direct swap, no tools needed
Technical Specifications
- Battery Type: Lithium‑Polymer (Li‑Po)
- Voltage: 3.7V
- Capacity: 4000mAh (14.8Wh) / 3300mAh (12.2Wh)
- OEM Part Number: S11GD103A, S11DG103A
- Compatible Models:
- Trimble: Juno T41, Juno T45, Juno 5, Slate
- Spectra Precision: T41
- Geospatial: T41‑R01‑001
- Runtime: 10–12 hours (4000mAh)
- Protection: Multi‑circuit safety (overcharge, over‑discharge, short‑circuit, thermal)
- Water/Dust Rating: IP54
- Operating Temperature: -20°C to +55°C
- Weight: Approx. 109g
- Dimensions: 83.5 × 49.5 × 6.6mm
- Cycle Life: 500+ charge cycles
- Certifications: CE, RoHS, FCC
- Charging Time: 3–4 hours (standard charger)
