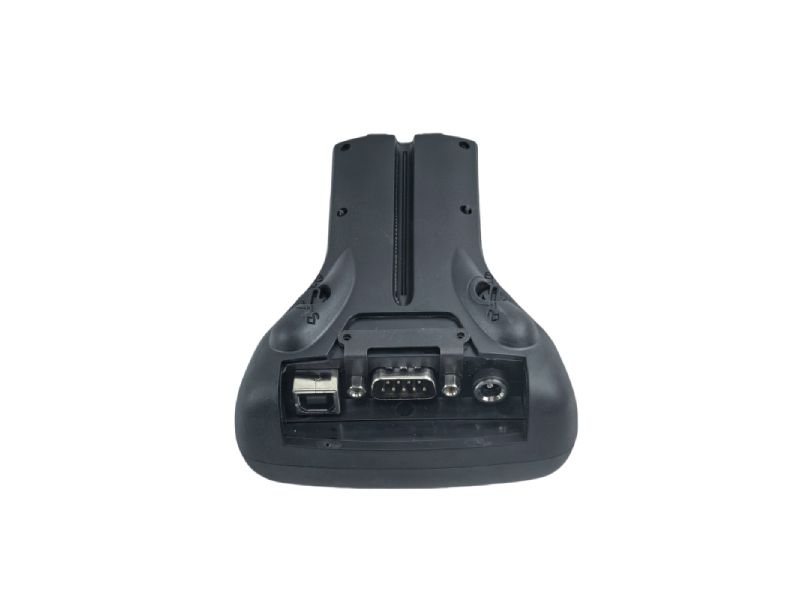

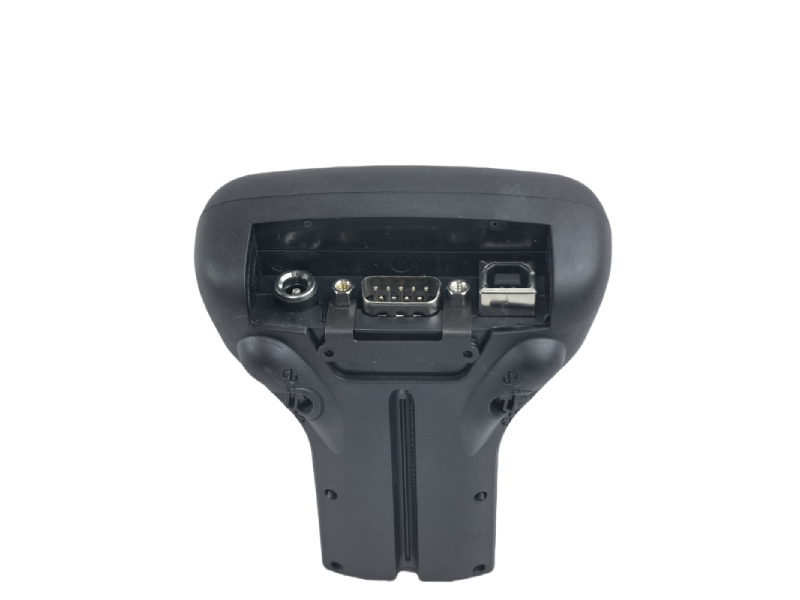

Trimble RECON Battery (2.4V 4000mAh Ni‑MH) – Powerboot Module for TDS Data Collectors
Power your Trimble TDS Recon handheld data collector with this high‑performance Ni‑MH battery, engineered for all‑day reliability in surveying, GIS, construction and field mapping. Designed as a direct replacement for the original Powerboot module, it delivers stable power, long runtime and rugged durability.
 |
|
 |
Key Benefits
- Full Compatibility: Fits Trimble TDS Recon 200, 200X, 400, 400X; Spectra LM80, Epoch 10
- High Capacity: 2.4V Ni‑MH, 3800mAh (standard) / 4000mAh (high‑capacity)
- Long Runtime: 12–15 hours continuous field use
- Built‑in Safety: PTC protection (overcharge, over‑discharge, short‑circuit, overheating)
- Rugged Field Design: IP67 waterproof, drop/vibration resistant
- Wide Temperature: ‑30°C to +60°C
- Plug‑and‑Play: Direct swap, no tools needed
Technical Specifications
- Battery Type: Nickel‑Metal Hydride (Ni‑MH)
- Voltage: 2.4V
- Capacity: 3800mAh / 4000mAh (9.12Wh / 9.6Wh)
- Compatible Models:
- Trimble TDS: Recon 200, 200X, 400, 400X
- Spectra Precision: LM80, Epoch 10
- Runtime: 12–15 hours (4000mAh)
- Protection: PTC multi‑circuit safety
- Waterproof: IP67
- Operating Temperature: ‑30°C to +60°C
- Weight: Approx. 210g
- Dimensions: 108.5 × 93.4 × 43.0mm
- Charging Time: 3–9 hours (depending on charger)
- Cycle Life: 500+ charge cycles
