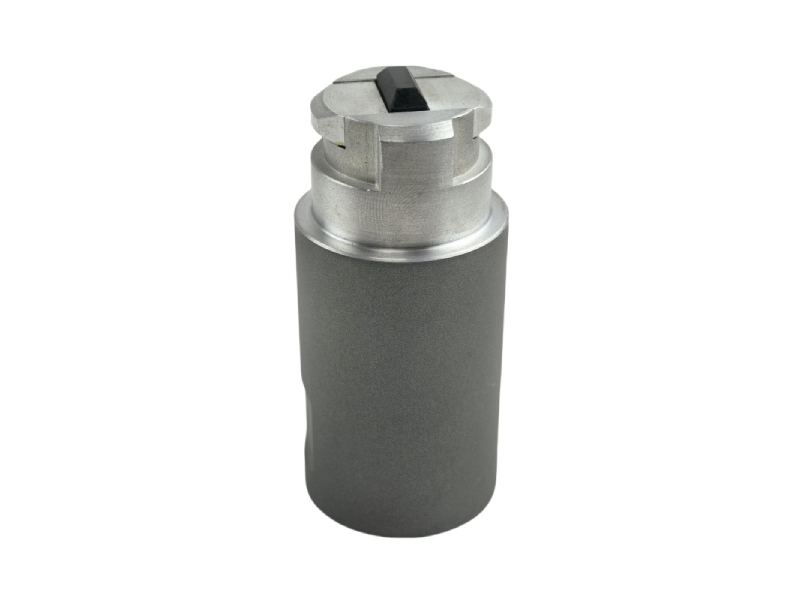

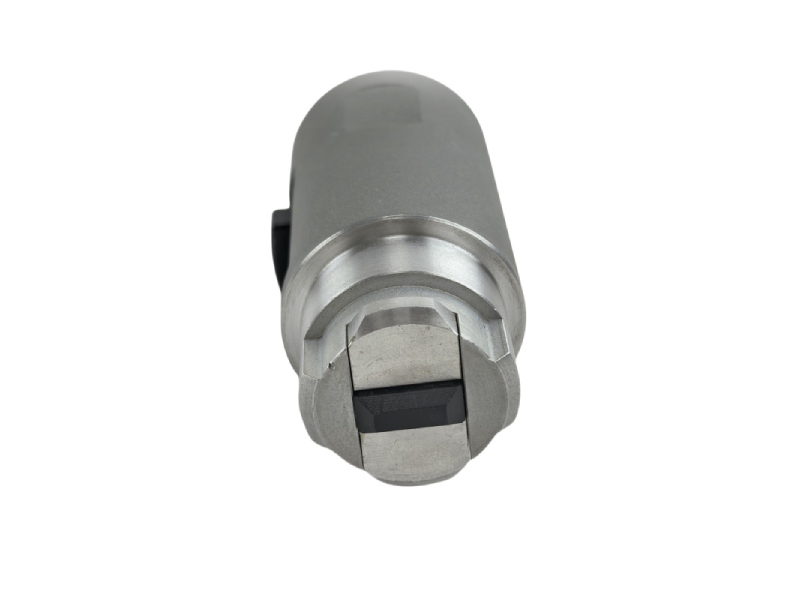

Trimble R10 / R12 / R12i Quick Release Adapter (0.05m) – GNSS Pole Mount Solution
Enhance your field efficiency with the genuine Trimble R10 quick release adapter, designed for seamless mounting and fast removal of Trimble GNSS receivers on standard surveying poles. Whether you’re doing RTK rover work, static GNSS surveys or base station setup, this adapter delivers rock‑solid stability and one‑handed release.
 |
 |
 |
Key Benefits
- Perfect Compatibility: Fits Trimble R10, R10‑2, R12, R12i and R980 GNSS receivers
- Standard Thread: 5/8″‑11 female thread, works with all common surveying/centering poles
- Fast & Safe: One‑touch locking and release; no tools needed
- Ultra‑Stable: Precision‑machined connection eliminates play, preserves survey accuracy
- Compact & Light: 0.05m effective height, minimal added weight
- Durable Build: High‑grade aluminium alloy, corrosion‑resistant, field‑proven
Technical Specifications
- Brand: Trimble (OEM equivalent available)
- Model: Quick Release Adapter 0.05m
- SKU: 89845-00
- Compatible Receivers: Trimble R10, R10‑2, R12, R12i, R980

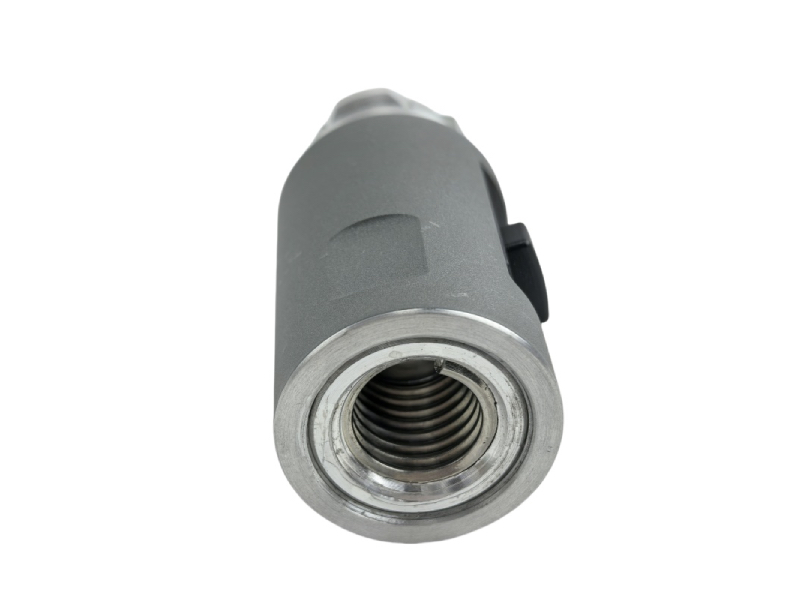

- Thread Size: 5/8″‑11 female (standard surveying pole thread)
- Effective Height: 0.05 m (50 mm)
- Material: Aerospace‑grade aluminium alloy
- Weight: Approx. 95 g
- Outer Diameter: 32 mm
- Operating Temperature: -40°C to +65°C
- Installation: Tool‑free, push‑and‑lock, one‑button release
