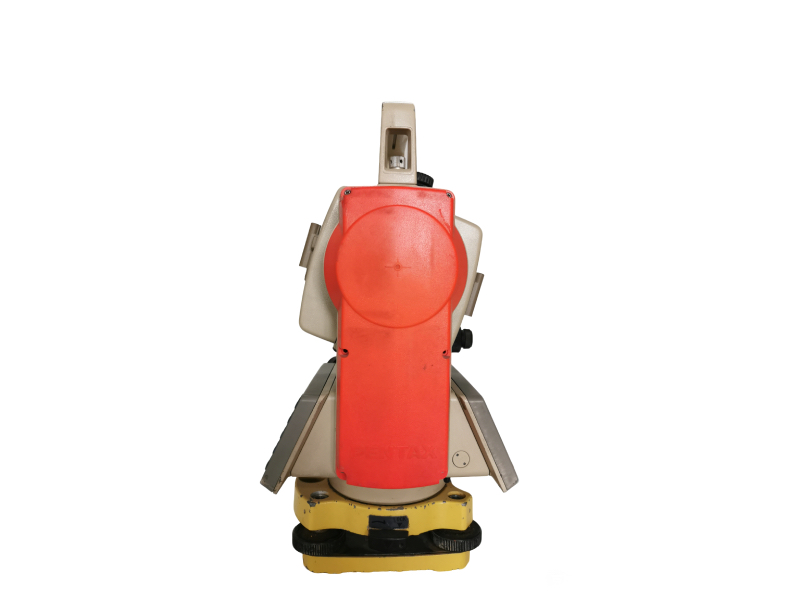

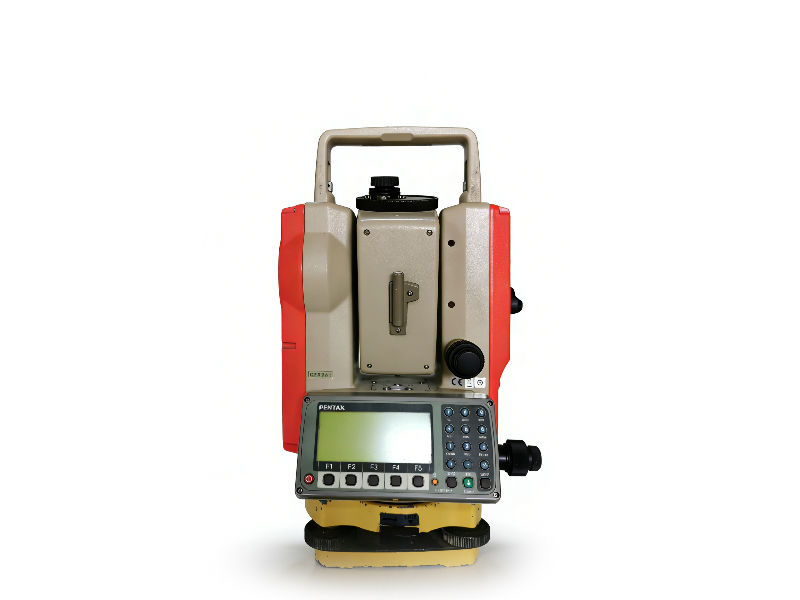

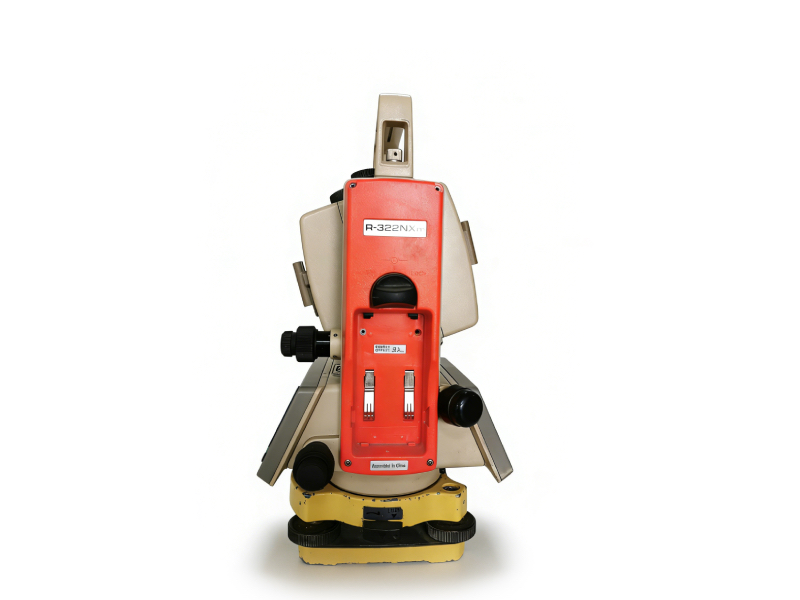

Pentax R-322N Total Station – High Precision for Professional Surveying
Introduction
The Pentax R-322N is a professional-grade total station designed for land surveying, construction layout, and geospatial mapping. With 2″ angular accuracy and ±(2+2ppm) EDM accuracy, it delivers precise and reliable measurements. The reflectorless measurement capability and advanced features make it an essential tool for surveyors, engineers, and construction professionals.
|
 |
Full Product Specifications
| Feature | Specification |
|---|---|
| Brand & Model | Pentax R-322N |
| Type | Electronic Total Station |
| Angular Accuracy | 2″ (0.6mgon) |
| EDM Accuracy | ±(2+2ppm × D) mm |
| Reflectorless Range | Up to 200m (good conditions) |
| Single Prism Range | Up to 4,500m (14,764 ft) |
| Telescope Magnification | 30X |
| Focus System | Auto / Power / Manual Focus |
| Display | Dual LCD with backlight |
| Memory | 20,000 points internal storage |
| Battery Life | Up to 10 hours (continuous measurement) |
| Operating Temp. | -20°C ~ +50°C |
| Laser Plummet | Visible laser for precise centering |
 |
 |
Simple Setup & Operation Guide
1. Instrument Setup
- Place the tripod firmly over the survey point.
- Attach the R-322N to the tripod and secure the locking screw.
- Turn on the laser plummet and adjust the tripod legs to center the laser on the point.
- Level the instrument using the circular and electronic vials.
2. Basic Measurement
- Power on the instrument; it initializes automatically (no need for angle reset).
- Use the telescope to sight the target (prism or reflectorless surface).
- Press the MEAS key to start distance and angle measurement.
- View results on the dual displays; save data to internal memory.
3. Maintenance Tips
- Store in a dry, temperature-controlled environment when not in use.
- Keep the lens clean with a soft, dry cloth; avoid harsh chemicals.
- Charge the battery fully before long-term storage; recharge every 3 months.
- Transport in the original hard case to prevent damage.
Key Advantages
- High Precision: 2″ angle accuracy and ±(2+2ppm) EDM accuracy ensure reliable results.
- Reflectorless Measurement: Measure distances up to 200m without a prism, saving time.
- Dual Displays: Convenient operation from either side of the instrument.
- Long Battery Life: Up to 10 hours of continuous use for all-day fieldwork.
- Durable Design: Built to withstand harsh outdoor conditions and heavy use.
