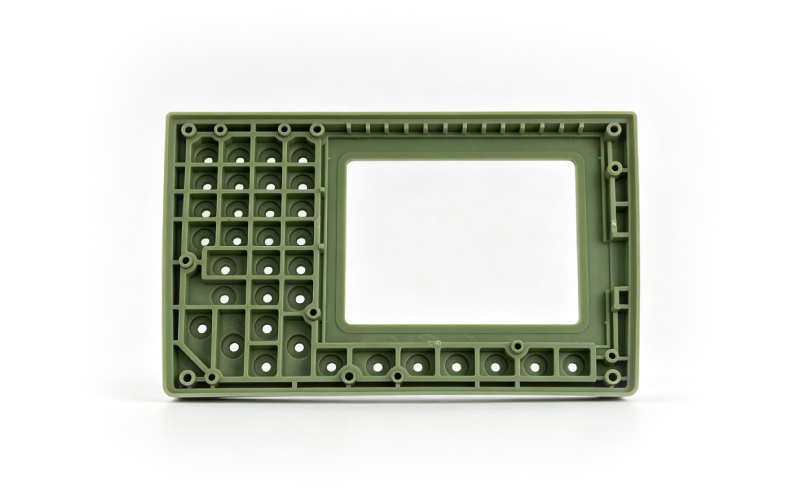

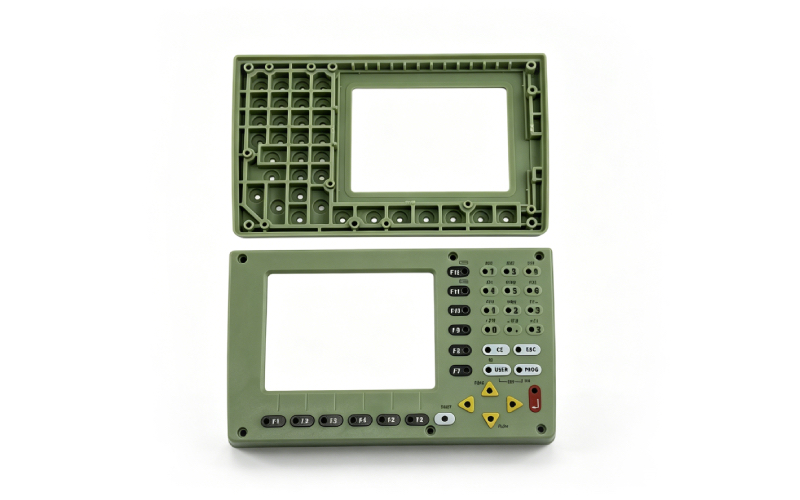

Leica TPS1200 Series Keypad Panel Case – High-Precision Replacement for Geophysical Survey

Product Overview

The Leica TPS1200 Series Keypad Panel Case is a professional original replacement part designed for Leica TPS1200 series total stations (TPS1201, TPS1202, TPS1203), widely used in geophysical exploration, engineering measurement and topographic mapping. This panel case features a precise fit, dust-proof and anti-fouling design, effectively protecting the keypad and internal circuit components from dust, debris and external impact, ensuring stable operation and high-precision measurement of the total station in harsh outdoor field conditions. Its smooth surface and tight button alignment also enhance operational comfort for surveyors during long-term field work.

Product Specifications

• Brand: Leica
• Compatible Models: Leica TPS1200 series (TPS1201, TPS1202, TPS1203) total stations
• Material: High-impact engineering plastic (durable, wear-resistant, corrosion-resistant, scratch-resistant) with matte surface finish for better grip
• Function: Dust-proof, anti-fouling, protects keypad and internal circuit components, ensures tight button fit, enhances operational comfort
• Color: Gray (matches original Leica TPS1200 series total station design, consistent with Leica accessory style)
• Dimensions: 120mm × 80mm × 15mm (approximate), perfectly matching the original equipment keypad interface and button layout
• Features: Original fit, easy installation, dust-proof seal, precise button cutouts, scratch-resistant surface, compatible with Leica TPS1200 keypad assembly, stable fixing without loosening
• Application: Geophysical survey, engineering measurement, topographic mapping, mining survey, construction surveying, total station maintenance and keypad protection

Brief Installation Instructions

1. Preparation: Turn off the Leica TPS1200 total station and place it on a stable, clean surface. Prepare a small plastic pry tool (avoid sharp tools) to prevent scratching the device, and a dry soft cloth for cleaning.
2. Remove Old Panel Case: Locate the keypad panel case on the front of the total station. Use the plastic pry tool to gently pry up the edge of the old panel case from one corner, slowly separating it from the device (do not force it to avoid damaging the keypad or internal components).
3. Clean Installation Area: Use the dry soft cloth to wipe the keypad surface and the panel case interface, removing dust, dirt, or debris to ensure a tight fit and good sealing performance.
4. Install New Panel Case: Align the new Leica TPS1200 Keypad Panel Case with the keypad interface and button cutouts, press it firmly from the center to the edges until it is fully attached and fixed. Ensure each button aligns with the corresponding cutout for smooth operation.
5. Verification: Gently press each button to confirm smooth operation and no jamming. Turn on the total station, test the keypad function to ensure all keys respond normally, and check that the panel case is firmly fixed without loosening.
