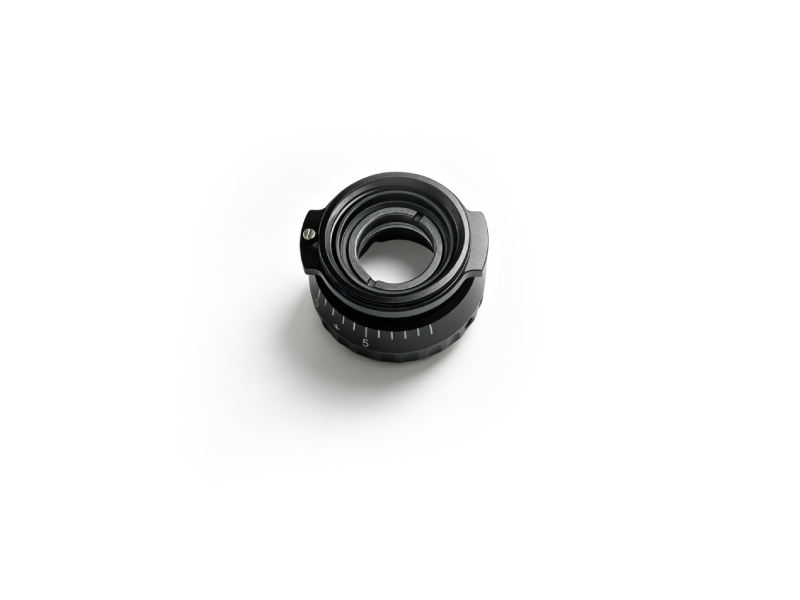

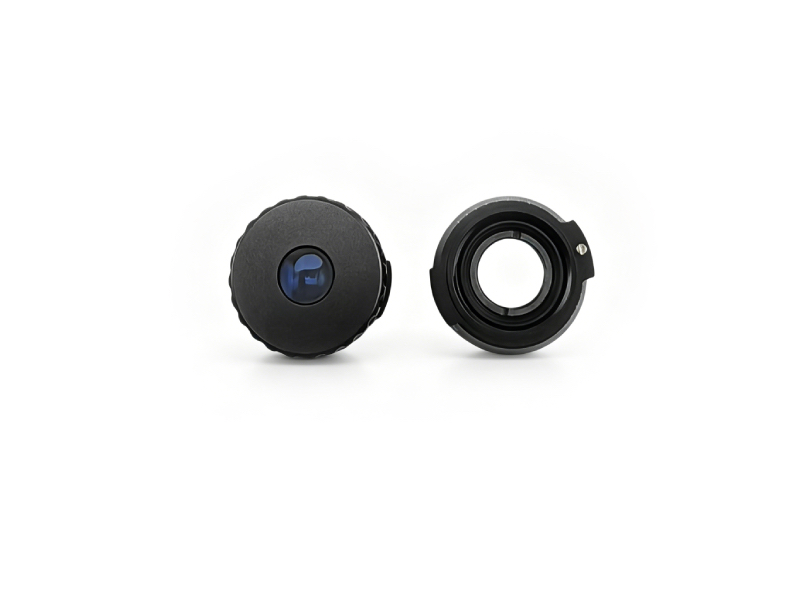

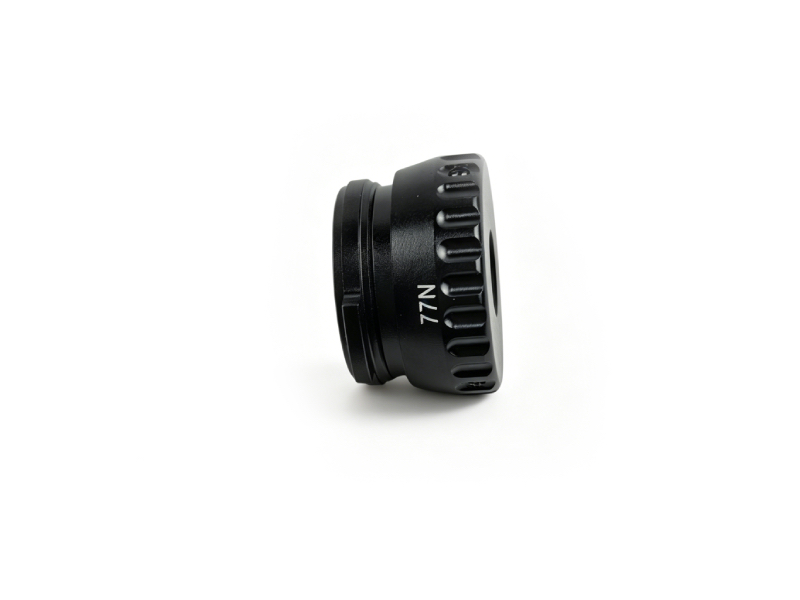

Leica Total Station Eyepiece – Genuine Replacement for Survey & Geophysical Equipment
Product Overview
This genuine Leica total station eyepiece is a high-quality optical replacement part, widely used for Leica TS, TC, TPS, TCR and other common total station models. It delivers clear, sharp imaging to support high-precision measurement in geophysical exploration, construction survey, topographic mapping and field monitoring.
|
Product Specifications
- Brand: Leica
- Product Type: Total Station Eyepiece
- Compatibility: Leica TS, TC, TPS, TCR, TZ series total stations
- Optical Feature: High-definition coated glass, anti-glare, clear diopter adjustment
- Material: Engineering plastic housing + precision optical glass
- Condition: Used original part, fully tested, fully functional
- Application: Geophysical survey, engineering measurement, construction mapping, field exploration
 |
 |
 |
Brief Installation Instructions
- Power off the total station and place it on a stable, clean surface.
- Carefully remove the old eyepiece by gently rotating it counterclockwise.
- Clean the instrument interface with a soft lint-free cloth to remove dust.
- Align the new Leica eyepiece with the mounting thread and rotate clockwise until firmly secured.
- Adjust the diopter to achieve clear vision, then test observation to ensure normal use.
