Price: $45.99 | Compatible Model: Leica TPS1200/TPS1800, TS02/TS06/TS09/TS11/TS12/TS15 Flexline Total Station, DNA03/DNA10 Digital Level, External Battery GEB70 / GEB171 / GEB371
This multi-functional Y-shaped GEV187 combo cable solves two core field troubles simultaneously: separate power and data cables causing messy wiring layout, frequent plug switching between PC data download and external battery power supply, loose aging factory split cables, unstable serial data transmission under external power input, voltage fluctuation triggering EDM tracking failure, and cracked single-purpose wiring requiring two separate leads. Original triple Y-branch design lets surveyors connect total station, PC and large-capacity external battery at the same time without repeated plug replacement.
|
 |
Product Overview

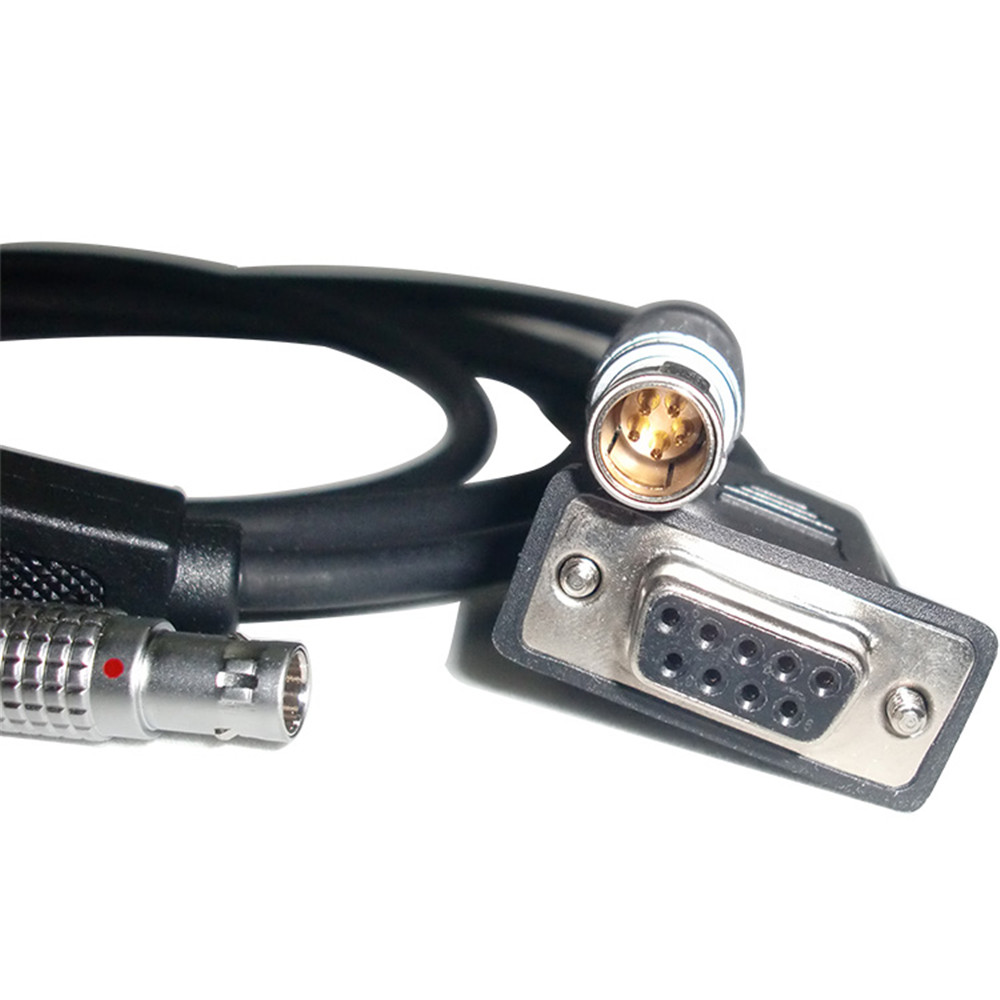

The Leica GEV187 integrated power-data Y cable with official OEM article number 734698 is a dedicated 1.8-meter triple-branch lead exclusively designed for Leica TPS series total stations and DNA digital levels. Three branch connectors include: 0B 5Pin Lemo male plug for survey instrument port, 1B 5Pin Lemo male plug for GEB series external battery, and DB9 female RS232 serial port for desktop/laptop PC connection. Built with double-layer full shielded pure copper wire core and wear-resistant anti-aging PUR outer sheath, it effectively isolates electromagnetic interference from construction machinery and power lines, ensuring stable power output and uninterrupted serial data transfer simultaneously. Molded reinforced strain relief at every connector root prevents internal wire fracture from frequent plugging, bending and field vibration during all-day continuous measurement tasks.
Core Advantages & Practical Structural Design
- Unique Y-type triple branch structure: Instrument 0B 5Pin Lemo + External Battery 1B 5Pin Lemo + DB9 RS232 Female, one cable realizes power supply and data download at the same time
- Standard 1.8m total length, sufficient slack for tripod instrument, ground-placed external battery and desktop PC layout without tangled wiring
- 100% replicated original factory pinout, supports continuous external power supply, raw measurement data export, coordinate calculation and instrument firmware upgrade synchronously
- Dual full shielding internal wiring, separates power circuit and data circuit to eliminate signal crosstalk and data packet loss when powered by external battery
- Flexible weatherproof PUR cable jacket, remains intact and soft under low-temperature winter and high-temperature construction site environments
- Thickened anti-break rubber reinforcement on all three connector roots, greatly extends service life under repeated plug and unplug operations
- Wide compatibility: full TPS1200/TPS1800, Flexline TS series and DNA digital levels, matched perfectly with GEB70, GEB171, GEB371 external large-capacity batteries
- Compatible matching accessory: Trimble TSC3 / TSC2 Yellow Nylon Carrying Case ($25, 0.2kg, 18 × 12 × 10 cm)
- Foldable compact Y-shape design, easy to roll and store in front accessory pouch alongside other single-branch serial wires and spare batteries
Dual Power+Data Synchronous Field Work & Application Scenarios
Essential all-in-one wiring accessory for large-area topographic mapping, long-hour tunnel control survey, road pipeline layout, engineering stakeout and deformation monitoring projects. Survey crews use GEV187 Y cable to connect external GEB171 battery to total station for extended runtime, while keeping stable RS232 communication link with PC to export measurement data in real time without stopping field work to swap cables. Consistent isolated power and data circuits avoid sudden instrument shutdown or data disconnection during simultaneous power supply and data transmission. Store this multi-functional Y cable and other small survey peripherals in our high-visibility yellow nylon data collector case; reinforced canvas belt loop supports waist hanging for convenient portable field transport.
Product Specifications
| OEM Article Number | GEV187 / 734698 |
|---|---|
| Connector Layout | Y Triple Branch: 0B 5Pin Lemo Male + 1B 5Pin Lemo Male + DB9 RS232 Female |
| Standard Cable Length | 1.8 Meters |
| Outer Jacket Material | Weatherproof Wear-Resistant PUR Insulation |
| Matched Survey Instruments | TPS1200/TPS1800, TS02/TS06/TS09/TS11/TS12/TS15, DNA03/DNA10 Digital Level |
| Compatible External Batteries | GEB70, GEB171, GEB371 High Capacity External Battery Packs |
| Core Dual Function | Simultaneous external power supply + RS232 two-way survey data transmission |
| Unit Net Weight | 0.155 kg |
| Stock Status | In Stock, Fast 24-Hour Global Dispatch |
| Matching Carry Case Specs | Yellow Wear-Resistant Nylon Case, Price $25, Weight 0.2kg, Dimension 18 × 12 × 10 cm |
Matching Survey Accessory: Trimble TSC3 / TSC2 Carrying Case ($25)
Constructed with thick tear-proof nylon fabric, this bright yellow field protective bag shields Trimble TSC2 & TSC3 handheld data collectors from scratches, dirt and minor impact damage. Equipped with solid canvas belt loop for waist mounting, the independent front storage compartment holds GEV187 Y-type power-data cables, other GEV series single-branch communication leads, GAD antenna arms and screen protectors. 20 units available in warehouse for immediate worldwide shipping.
