Price: $78.99 | Compatible Model: Leica RX1210 RX1250 Field Controller, GX1200 GRX1200 GNSS Rover Receiver, System 1200 GPS Series
This OEM-spec GEV163 handset-to-GNSS communication cable resolves common field connection failures: intermittent real-time RTK data link between controller and rover, unrecognized GNSS receiver by RX1210 hand controller, cracked aged original wiring, delayed coordinate stakeout data transmission, loose 8pin Lemo contacts causing fixed solution dropouts, and signal interference near construction machinery. Fully matches factory pin definition to deliver stable bidirectional survey data transmission between Leica field controllers and GNSS rover units.
|
 |
Product Overview
The Leica GEV163 controller cable with official OEM article number 733283 is a dedicated 1.8-meter interconnection lead designed exclusively for Leica System 1200 GNSS RTK rover kits. Both ends adopt Lemo 1B bayonet-locked 8Pin male connectors, one plug inserts into RX1210/RX1250 data controller port, the other connects to GX1200/GRX1200 GNSS receiver data interface. Built with double-layer fully shielded pure copper wire core and wear-resistant anti-UV PUR outer sheath, this cable effectively filters electromagnetic interference from vehicle engines, power lines and heavy construction equipment. Thick reinforced rubber strain relief at both connector roots prevents internal wire fracture caused by frequent plugging, pulling and bending during all-day outdoor topographic and engineering survey tasks.
Core Advantages & Practical Structural Design

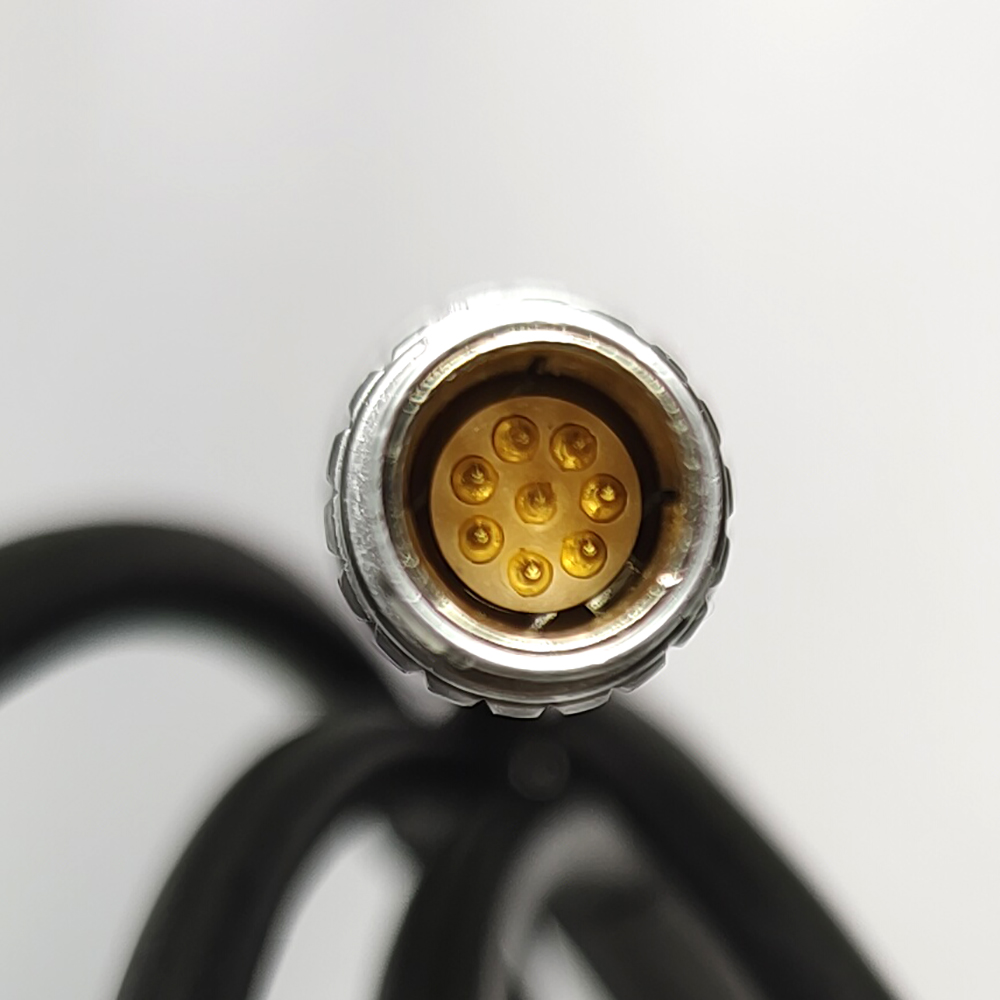

- Dual Lemo 1B 8Pin male bayonet locking connectors, direct plug-and-play replacement for original factory GEV163 cable
- Standard 1.8m total length, flexible layout for handheld controller and tripod-mounted GNSS rover without cable tension
- 100% replicated factory pinout, supports real-time RTK differential data, stakeout coordinate transfer, receiver parameter setup and firmware upgrade
- Double full shielding construction, minimizes signal attenuation and eliminates data packet loss in complex construction site electromagnetic environments
- Flexible anti-aging PUR cable jacket, maintains softness under freezing winter and high-temperature summer working conditions
- Bayonet twist lock Lemo connectors, prevents accidental disconnection during field walking, vibration and instrument movement
- Full compatibility with RX1210, RX1250 controllers, GX1200 and GRX1200 GNSS rover receivers of System 1200 series
- Compatible matching accessory: Trimble TSC3 / TSC2 Yellow Nylon Carrying Case ($25, 0.2kg, 18 × 12 × 10 cm)
- Lightweight foldable design, easy to store in front accessory pouch alongside other serial wires, antenna coaxial cables and spare batteries
Stable RTK Field Data Link & Application Scenarios
Indispensable core communication accessory for RTK land boundary survey, road & pipeline layout, construction stakeout, mine topographic mapping and engineering deformation monitoring projects. Surveyors rely on GEV163 cable to maintain continuous real-time differential data transmission between RX1210 field controller and GX1200/GRX1200 rover receiver, ensuring stable fixed RTK solutions and seamless stakeout coordinate loading without mid-work signal interruption. Store this controller connection cable and other small survey peripherals in our high-visibility yellow nylon data collector case; reinforced canvas belt loop supports waist hanging for convenient hands-free field transport across large survey sites.
Product Specifications
| OEM Article Number | GEV163 / 733283 |
|---|---|
| Connector Layout | Dual Lemo 1B 8Pin Male Bayonet Lock to Male |
| Standard Cable Length | 1.8 Meters |
| Outer Jacket Material | Weatherproof Wear-Resistant PUR Insulation |
| Matched Field Controllers | Leica RX1210, RX1250 Hand Data Controllers |
| Compatible GNSS Receivers | GX1200, GRX1200 System 1200 RTK Rover Receivers |
| Core Function | Bidirectional RTK data transfer between field controller and GNSS rover |
| Unit Net Weight | 0.13 kg |
| Stock Status | In Stock, Fast 24-Hour Global Dispatch |
| Matching Carry Case Specs | Yellow Wear-Resistant Nylon Case, Price $25, Weight 0.2kg, Dimension 18 × 12 × 10 cm |
Matching Survey Accessory: Trimble TSC3 / TSC2 Carrying Case ($25)
Constructed with thick tear-proof nylon fabric, this bright yellow field protective bag shields Trimble TSC2 & TSC3 handheld data collectors from scratches, dirt and minor impact damage. Equipped with solid canvas belt loop for waist mounting, the independent front storage compartment holds GEV163 controller cables, GEV series power leads, GAD antenna arms and screen protectors. 20 units available in warehouse for immediate worldwide shipping.
